Kia Sorento: Air Cleaner Components
Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Intake And Exhaust System / Air Cleaner Components

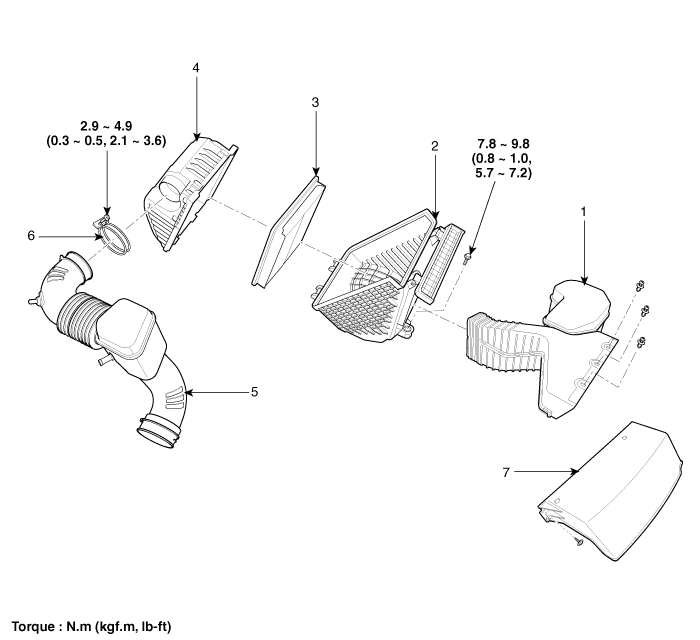

| 1. Air duct 2. Air cleaner body 3. Air cleaner element 4. Air cleaner cover |
5. Air intake hose 6. Clamp 7. Air intake shield |
Intake And Exhaust System
1.
Remove the engine cover.
2.
Remove the air duct (A).
3.
Remove the battery.
(Refer to Engine Electric...
Air Cleaner Removal and Installation
