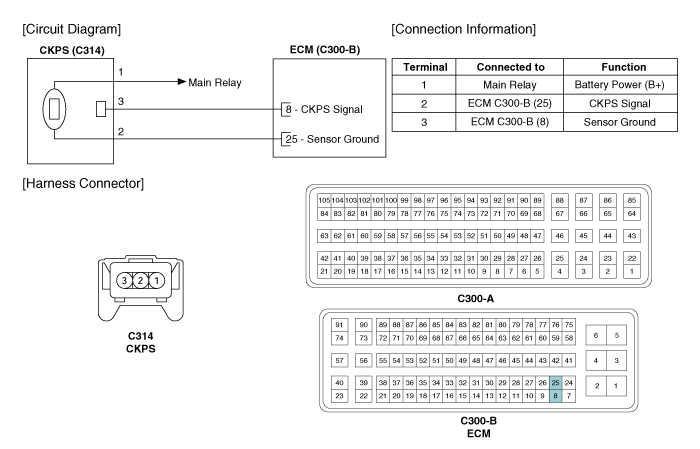

Kia Sorento: Circuit Diagram - Crankshaft Position Sensor (CKPS) - Engine Control System - Engine Control / Fuel SystemKia Sorento: Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Engine Control / Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS) / Circuit Diagram

Wave Form
...
Inspection
1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to...
