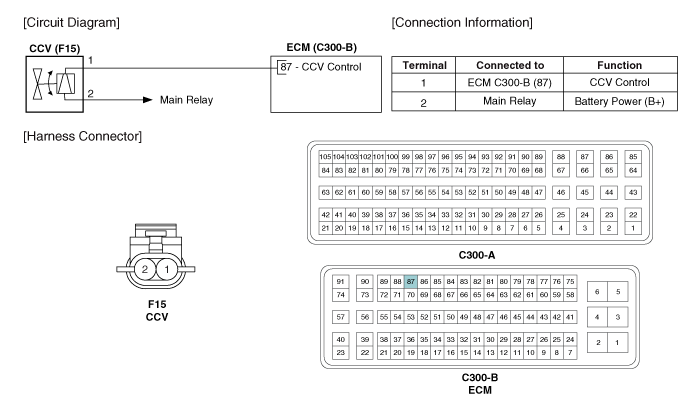

Kia Sorento: Circuit Diagram - Canister Close Valve (CCV) - Engine Control System - Engine Control / Fuel SystemKia Sorento: Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Engine Control / Fuel System / Engine Control System / Canister Close Valve (CCV) / Circuit Diagram

Specification
Item Specification Coil Resistance (Ω) 19.9 ~ 22.9 [20...
Inspection
1. Turn the ignition switch OFF. 2. Disconnect the CCV connector. 3. Measure resistance between the CCV terminal 1 and 2. ...
