Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Windshield Wiper/Washer / Component Location

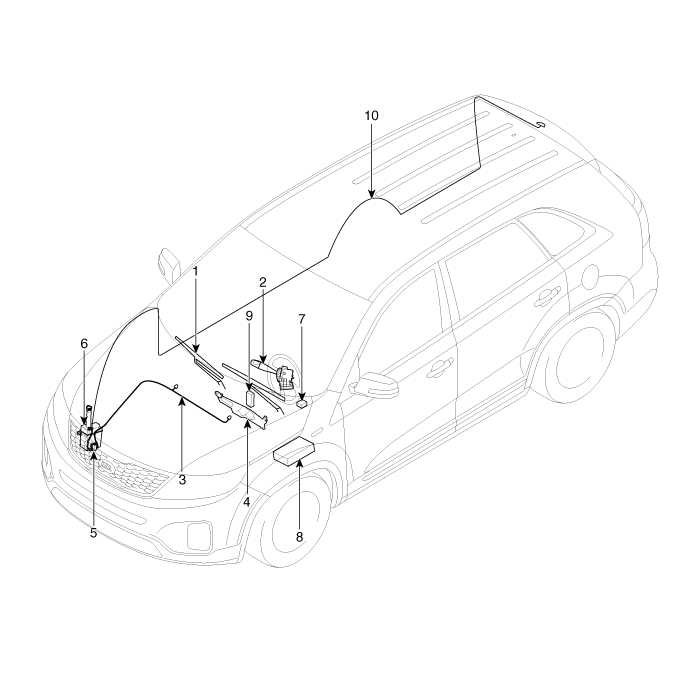

| 1. Windshield wiper arm & blade 2. Wiper & washer switch 3. Windshield washer hose 4. Windshield wiper motor & linkage 5. Washer motor |
6. Washer reservoir 7. Head lamp washer switch (Crash pad side garnish) 8. Front wiper relay (Engine room relay box) 9. Rear wiper relay (ICM relay box) 10. Rear washer hose & nozzle |
Windshield Wiper/Washer
Windshield Wiper-Washer Switch Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering column upper and lower shrouds (A) after loosening
3 screws.
...
See also:
Fuel Filler Door Release Actuator Inspection
1.
Remove the fuel filler cover (A) after loosening screws (2EA).
2.
Remove the fuel filler door module (A).
...
