Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Button Engine Start System / Component Location

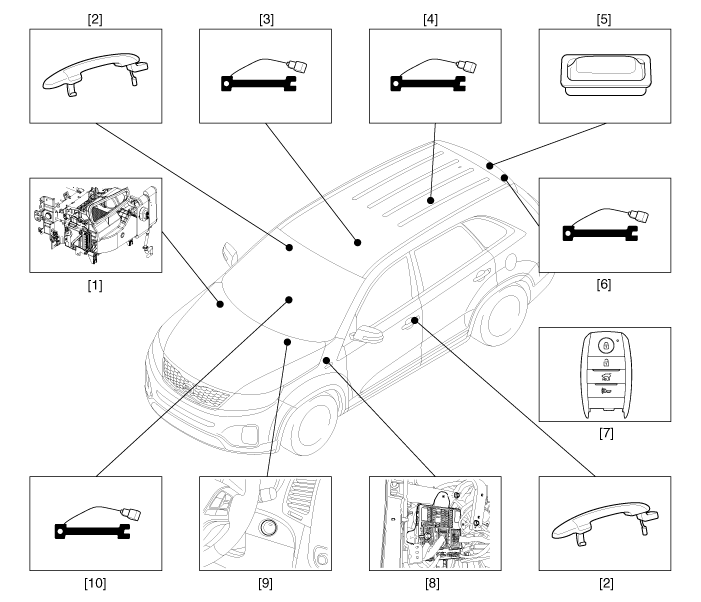

1. Smart key unit
2. Door handle & door antenna
3. Interior antenna 2
4. Interior antenna 3
5. Tailgate switch
6. Bumper antenna
7. FOB key
8. IPM (Intelligent intergrated Platform Module)
 9. Start Stop Button (SSB)
10. Interior antenna 1

Button Engine Start System
...
Circuit Diagram (1)
...
