Kia Sorento: Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Rear Parking Assist System / Component Location

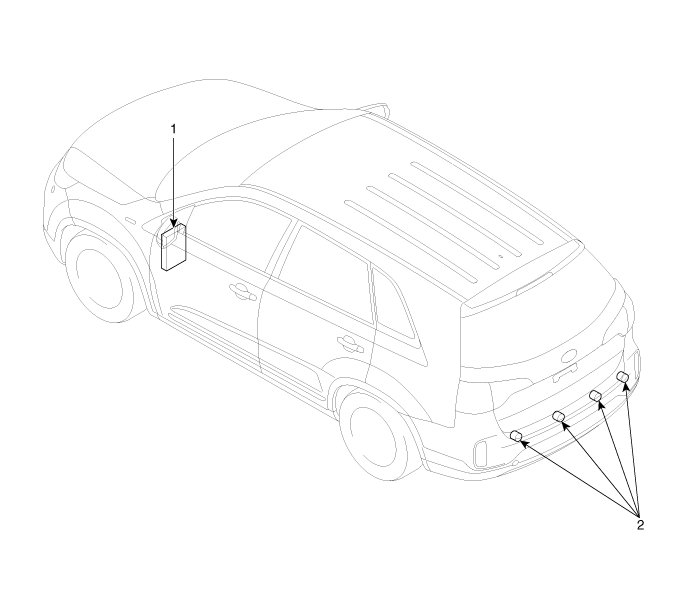

| 1. IPM (Intelligent intergrated Platfrom Moduel) |
2. Ultrasonic sensor |
Item
Specification
Ultrasonic sensor
Voltage rating
DC 12 V
Detecting range
30 cm ~ 120 cm
Operation voltage
DC 9 ~ 16 V
...
Specification
RPAS (Rear Parking Assist System) is an electronic driving aid that warns
the driver to be cautious while parking or in low speed environments. The sensor
uses ultrasonic waves to detect objects...
