Kia Sorento: Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Heating,Ventilation And Air Conditioning / Air conditioning System / Component Location

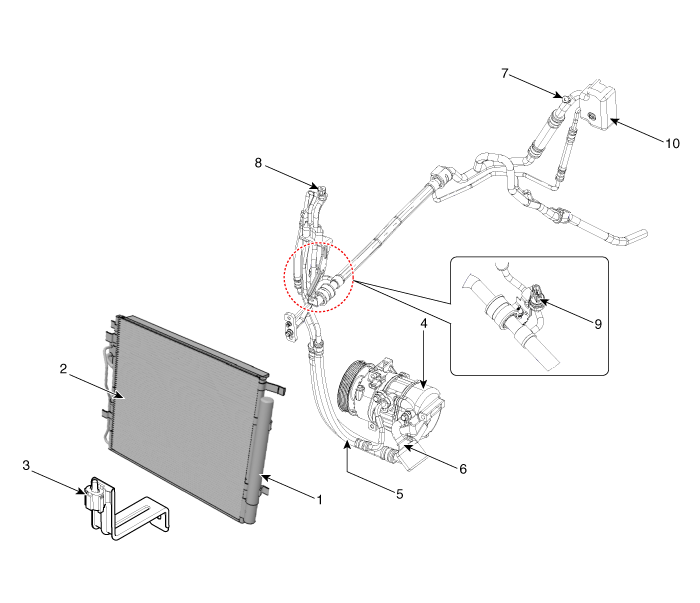

| [Engine Room] |
| 1. Receiver-drier 2. Condenser 3. Ambient temperature Sensor 4. Compressor 5. Discharge Hose |
6. Suction & Liquid Tube Assembly 7. Service Port (Low Pressure) 8. Service Port (High Pressure) 9. A/C Pressure Transducer 10. Expansion Valve |

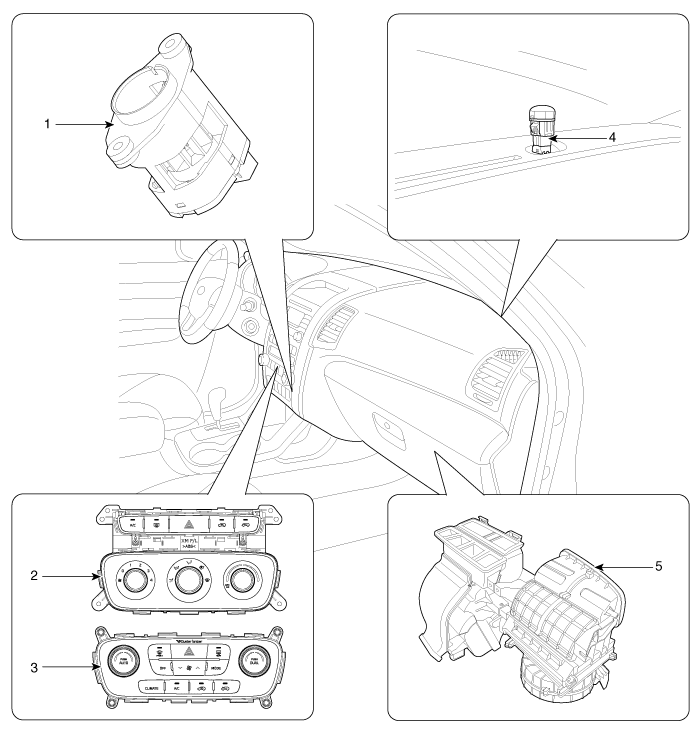

| [Interior] |
| 1. In-car sensor 2. Heater & A/C Control Unit (Manual) 3. Heater & A/C Control Unit (DATC) |
4. Photo Sensor 5. Heater & Blower Unit |
