Kia Sorento: Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Automatic Transaxle System / Clutch & Brake / Component Location

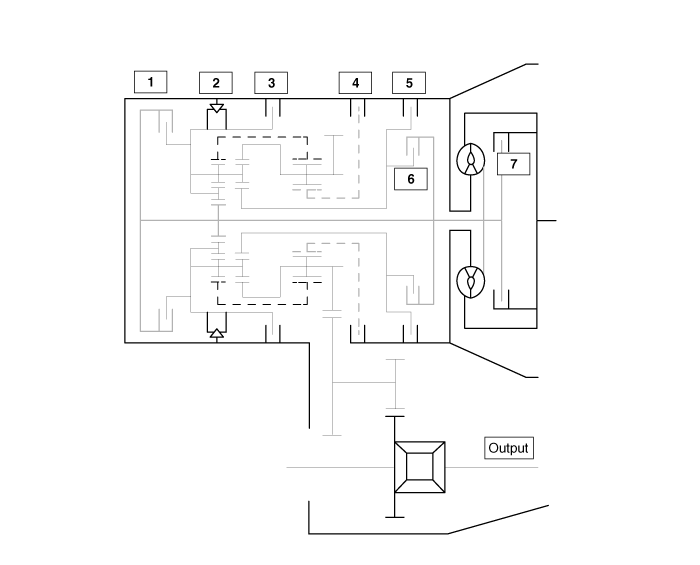

| 1. Overdrive Clutch (OD/C) 2. One way Clutch (OWC) 3. Low & Reverse Brake (LR/B) 4. Underdrive Brake (UD/B) |
5. 26 Brake(26/B) 6. 35R Clutch (35R/C) 7. Damper Clutch (D/C) |
Description
The 6-speed automatic transaxle consists of an overdrive clutch (OD/C),
a one-way clutch (OWC), a lower and reverse brake (LR/B), an underdrive brake
(UD/B), a 26 brake (26/B), and a 35R clutch ...
Power Flow Chart
P,N
UD/B
LR/B
26/B
35R/C
OD/C
OWC
●
▣ Direction of Rotation
▶Low...
