Kia Sorento: Components - Rear Suspension System - Suspension SystemKia Sorento: Components

Kia Sorento (XM, 2011-2015) Service Manual / Suspension System / Rear Suspension System / Components

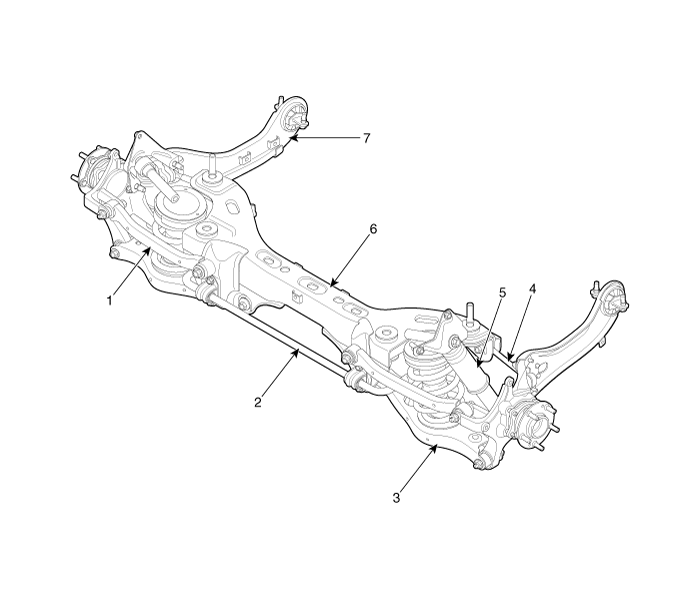

2WD

1. Rear upper arm
2. Rear stabilizer bar
3. Rear lower arm
4. Rear assist arm
5. Rear shock absorber
6. Rear cross member
7. Trailing arm

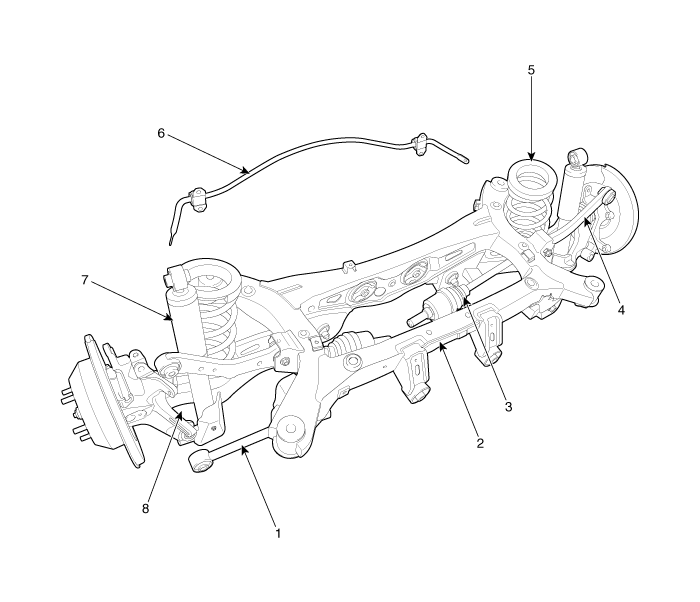

4WD

1. Rear assist arm
2. Rear cross member
3. Rear drive shaft
4. Rear upper arm
5. Rear coil spring
6. Rear stabilizer bar
7. Rear shock absorber
8. Rear lower arm

Rear Suspension System
...
Rear Shock Absorber Removel
2WD 1. Remove the rear wheel and tire (A) from rear hub . Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) ...
