Kia Sorento: Components

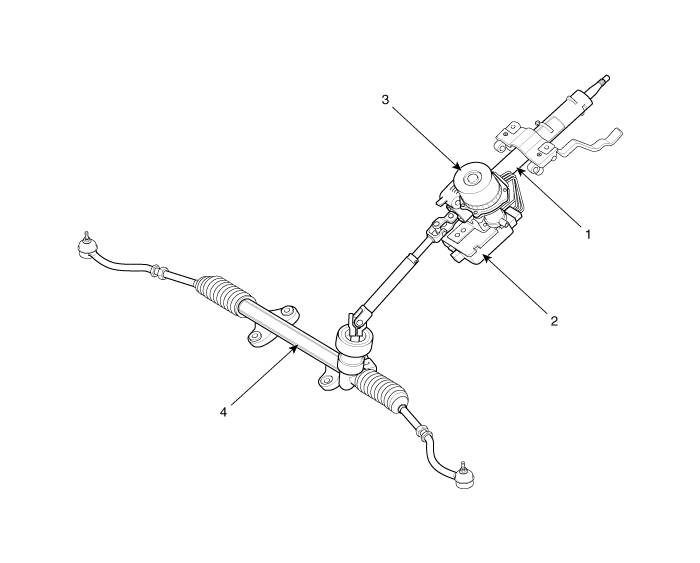

| 1. Steering column shaft 2. ECU |
3. Motor 4. Steering gear box |
EPS (Electric power steering, Column assist type) system uses an electric
motor to assist the steering force and it is an engine operation independent
steering system.
EPS control module co...
Description
MDPS Circuit Diagram
Harness Connector
Connector
Pin no
Pin name
Battery
1
Battery +
2
Battery -
Vehicle s...
Schematic Diagrams
See also:
Instrument Cluster Components
Connector Pin Information
Pin No.
Description
Pin No.
Description
1
Airbag supply
21
Battery
2
P (AT)
...
Components
...
Steering Gear box Removal
1.
Remove the front wheel and tire (A) from front hub.
Tightening torque :
88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)
...
