Kia Sorento: Components - ESC(Electronic Stability Control) System - Brake SystemKia Sorento: Components

Kia Sorento (XM, 2011-2015) Service Manual / Brake System / ESC(Electronic Stability Control) System / Components

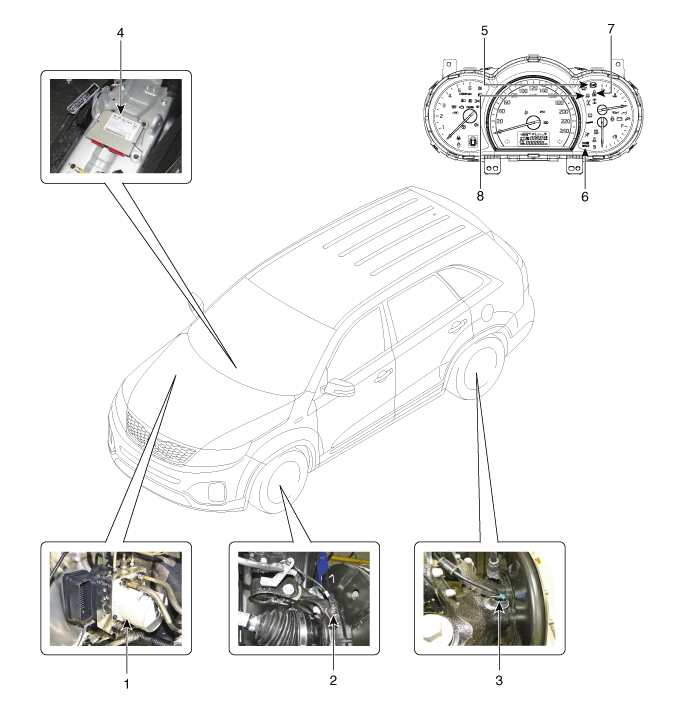

1. HECU module
2. Front wheel speed sensor
3. Rear wheel speed sensor
4. Yaw rate & Lateral G sensor
5. ABS Warning lamp
6. Parking brake/EBD warning lamp
7. ESC Function/Warning lamp
8. ESC OFF lamp
