Kia Sorento: Compressor Components
Kia Sorento (XM, 2011-2015) Service Manual / Heating,Ventilation And Air Conditioning / Air conditioning System / Compressor Components

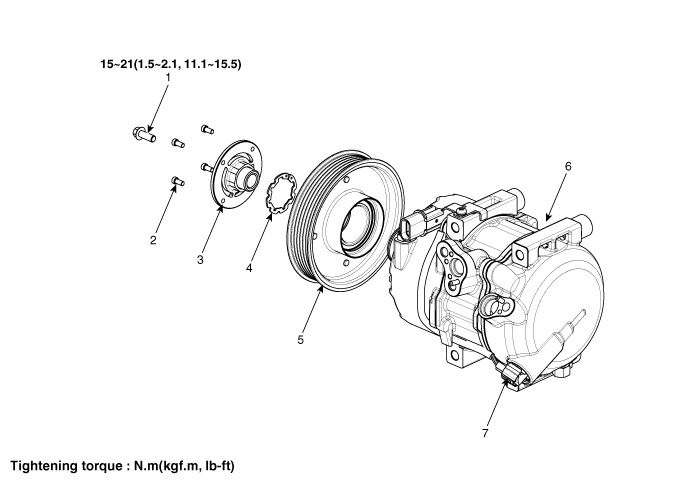

| 1. Center Bolt 2. Hub Bolt 3. Hub Assembly 4. Snap Ring |
5. Pulley 6. Compressor Assembly 7. Electric Control Valve |
Compressor Description
The compressor is the power unit of the A/C system.
It is located on the side of engine block and driven by a V-belt of the
engine.
The compressor changes low pressure and low temperature r...
Compressor Removal
1.
If the compressor is marginally operable, run the engine at idle
speed, and let the air conditioning work for a few minutes, then shut
the engine off.
2.
...
