Kia Sorento: Crash Pad Components
Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Exterior / Crash Pad Components

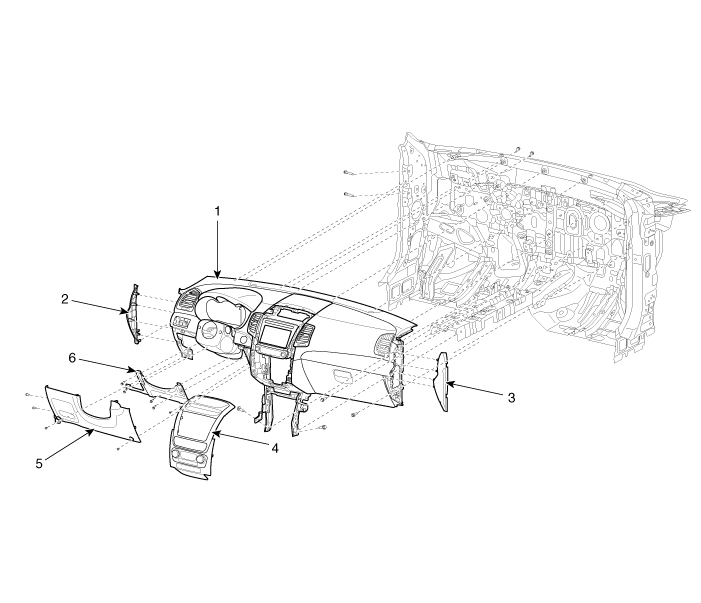

| 1. Main crash pad assembly 2. Crash pad side cover [LH] 3. Crash pad side cover [RH] |
4. Center fascia panel 5. Crash pad lower panel 6. Reinforce panel |
Console Replacement
Floor Console Assembly Replacement
•
Pry the trim off using a plastic trim tool and apply pr...
Crash Pad Replacement
Cluster Fascia Panel Replacement
•
Pry the trim off using a plastic trim tool and apply prot...
