Kia Sorento: CVVT & Camshaft Operation Principle
Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cylinder Head Assembly / CVVT & Camshaft Operation Principle

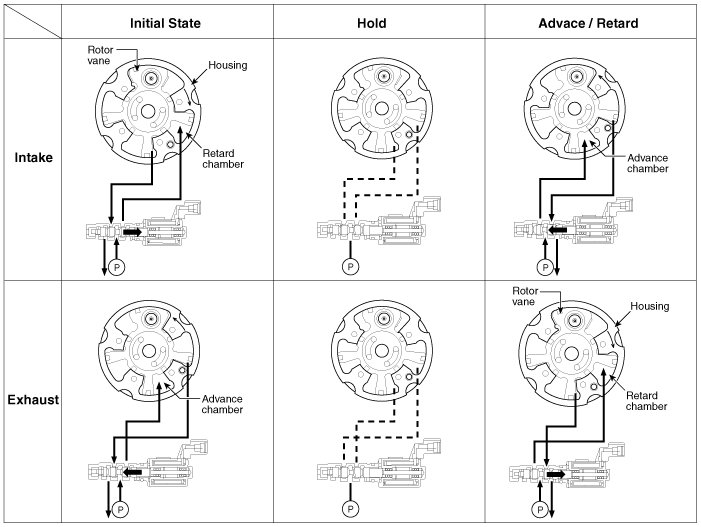

The CVVT has the mechanism rotating the rotor vane with hydraulic force generated
by the engine oil supplied to the advance or retard chamber in accordance with
the CVVT oil control valve control.
CVVT & Camshaft Description
Continuous Variable Valve Timing (CVVT) system advances or retards the valve
timing of the intake and exhaust valve in accordance with the ECM control signal
which is calculated by the engine sp...
[CVVT System Mode]
(1) Low Speed / Low Load
(2) Part Load
(3) Low Speed / High Load
(4) High Speed / High Load
...
