Kia Sorento: ESC Control Module Components
Kia Sorento (XM, 2011-2015) Service Manual / Brake System / ESC(Electronic Stability Control) System / ESC Control Module Components

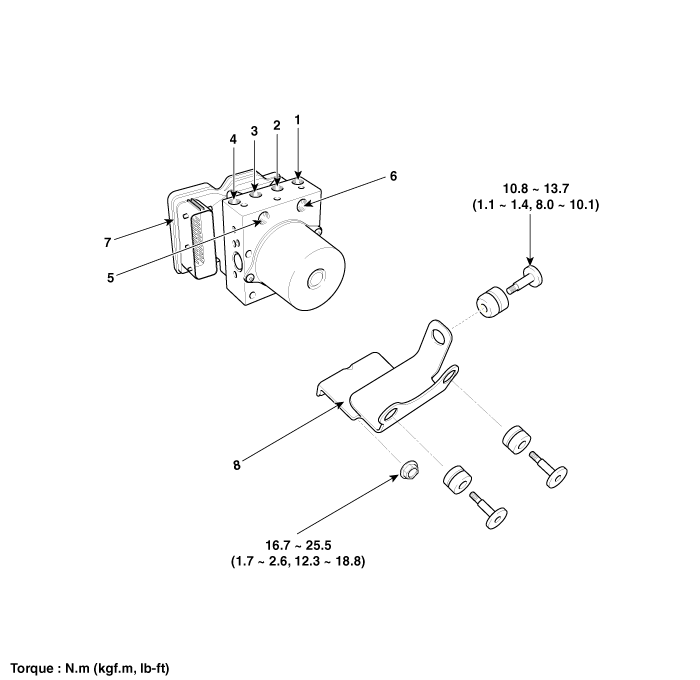

| 1. Front - left tube 2. Rear - right tube 3. Rear - left tube 4. Front - right tube |
5. MC2 6. MC1 7. ESC control module (HECU) 8. Bracket |
The EBD system (Electronic Brake force Distribution) as a sub-system of
the ABS system is to control the maximum braking effectiveness by the rear wheels.
It further utilizes the efficiency of ...
EBD (Electronic Brake-force Distribution)
1.
Turn the ignition switch OFF.
2.
Remove the surge tank. [G3.3 GDI]
(Refer to Engine Mechanical System - "Surge Tank")
...
ESC Control Module Removal
