Kia Sorento: External Amplifier Components - AVN System - Body Electrical SystemKia Sorento: External Amplifier Components

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / AVN System / External Amplifier Components

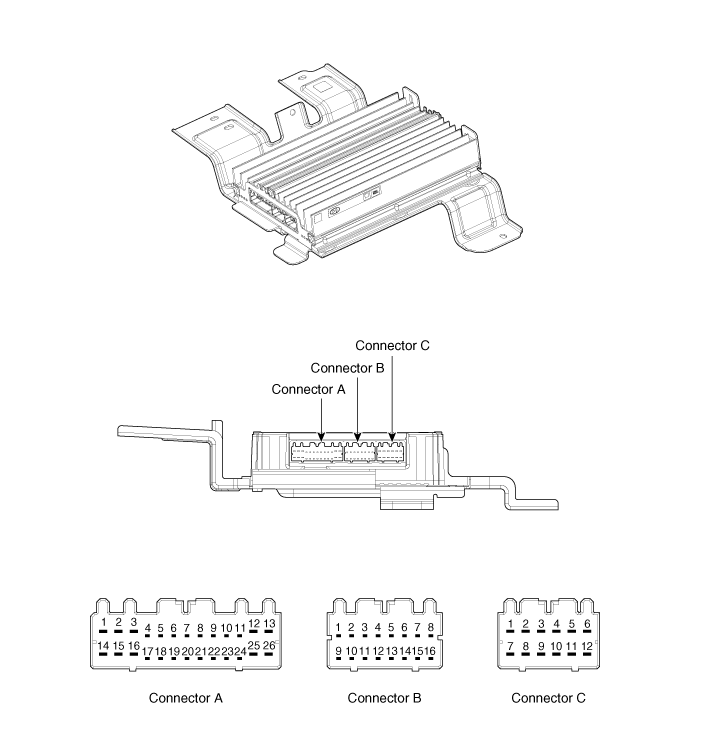

Connector Pin Information
No.
Connector A (26 pin)
Connector B (16 pin)
Connector C (12 pin)
1
Battery +
Right surround speaker +
Rear right door +
2
Battery +
Left surround speaker +
Rear left door  speaker +
3
Battery +
-
Front right tweeter speaker +
4
-
-
Front left tweeter speaker +
5
CAN +
-
Front right door speaker +
6
CAN -
-
Front left door speaker +
7
ACC
Front center speaker +
Rear right door speaker -
8
IGN 1
-
Rear left door speaker -
9
-
Right surround speaker -
Front right tweeter speaker -
10
-
Left surround  speaker -
Front left tweeter speaker -
11
Navigation voice +
-
Front right door speaker -
12
Subwoofer 2 +
-
Front left door speaker -
13
Subwoofer 1 +
-

14
Ground
-
15
Ground
Front center speaker -
16
Ground
-
17
-

18
SPDIF +
19
SPDIF -
20
SPDIF ground
21
-
22
-
23
-
24
Navigation voice -
25
Subwoofer 2 -
26
Subwoofer 1 -

Multimedia Jack Installation
1. Install the Multimedia jack. 2. Install the console upper cover....
External Amplifier Removal
External Amplifier 1. Remove the passenger seat assembly. (Refer to Body - "Front Seat Assembly") 2. Remove the external ampl...
