Kia Sorento: Filter replacement - Air cleaner - MaintenanceKia Sorento: Filter replacement

Kia Sorento (XM, 2011-2015) Owner's Manual / Maintenance / Air cleaner / Filter replacement

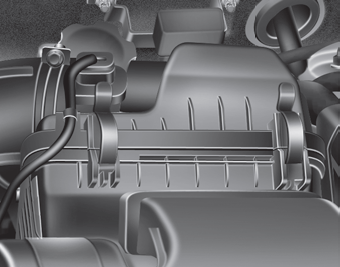

It must be replaced when necessary, and should not be washed.


It must be replaced when necessary, and should not be washed.

You can clean the filter when inspecting the air cleaner element. Clean the filter by using compressed air.

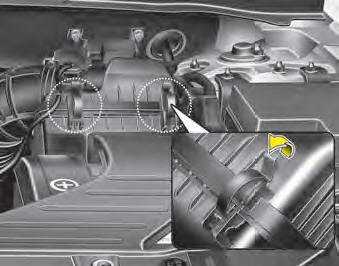

1. Loosen the air cleaner cover attaching clips and open the cover.


1. Loosen the air cleaner cover attaching clips and open the cover.

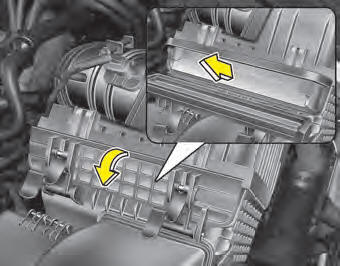

2. Wipe the inside of the air cleaner box.


2. Wipe the inside of the air cleaner box.

3. Replace the air cleaner filter.

4. Lock the cover with the cover attaching clips.

Replace the filter according to the Maintenance Schedule.

If the vehicle is operated in extremely dusty or sandy areas, replace the element more often than the usual recommended intervals.

CAUTION

Air cleaner
...
Climate control air filter (If equipped)
...
