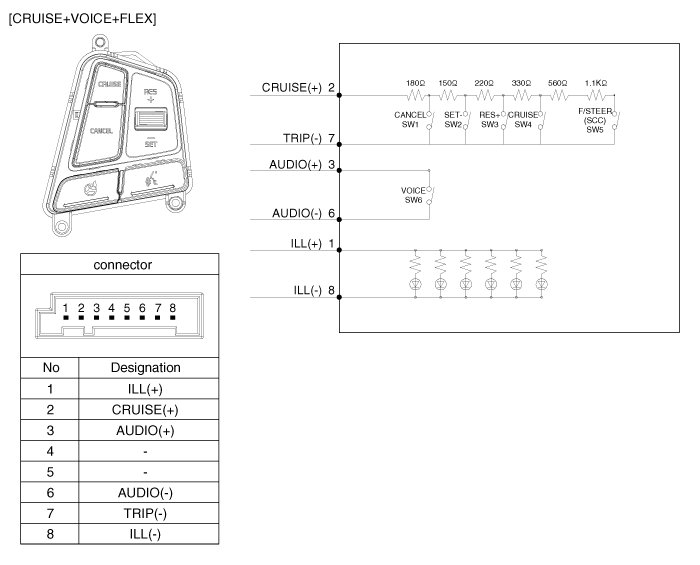

Kia Sorento: Flex Steering Circuit Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Steering System / Steering wheel / Flex Steering Circuit Diagram
Flex Steering Instruction
Flex Steering is system to choose the three modes power steering depending
on driver preference or driving conditions.
...
Flex Steering Inspection
1.
Check the audio flex streeing switch (A) for resistance between
terminals in each switch position.
Switch
Resistance (±5%)
...
