Kia Sorento: Front Wheel Transfer Assembly Components Location

Kia Sorento (XM, 2011-2015) Service Manual / 4 Wheel Drive (4WD) System / Transfer Assembly / Front Wheel Transfer Assembly Components Location

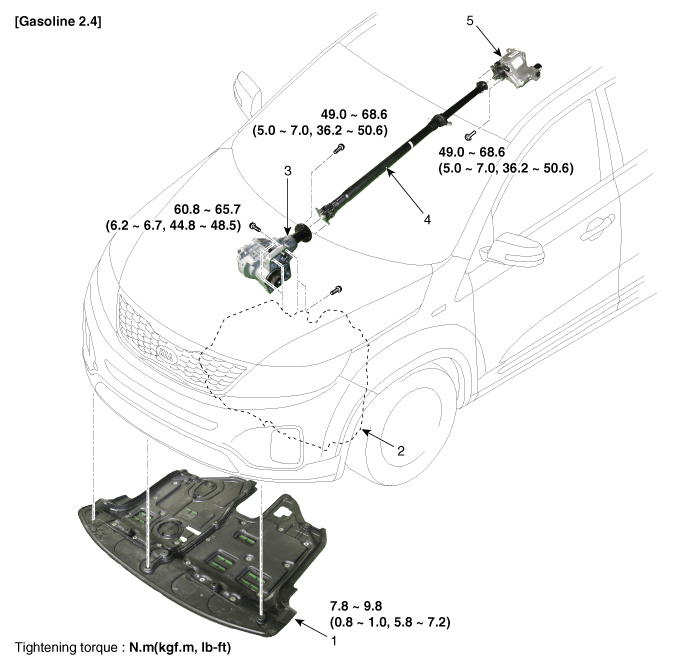

1. Under cover
2. Transaxle Assembly
3. Transfer assembly

4. Propeller shaft
5. Coupling assembly

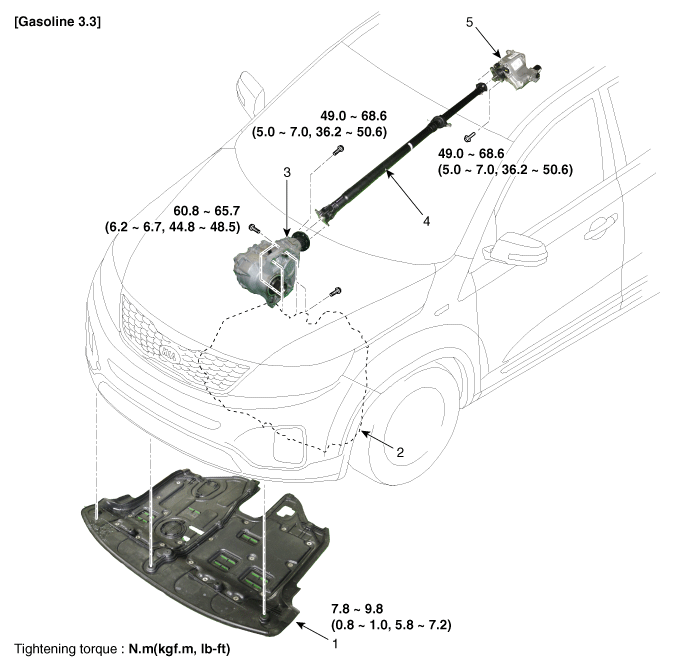

1. Under cover
2. Transaxle Assembly
3. Transfer assembly

4. Propeller shaft
5. Coupling assembly

Transfer Fluid Replacement

Change Normal Use Severe Use No service required 120,000 km (80,000 m...

Front Wheel Transfer Assembly Removal

It is not recommended to overhaul the transfer assembly because a special three-dimensional measuring instrument is required to determine the s...

See also:

Removal
1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the connector (A), and then remove the sensor ...

Specifications
Direct control VFS[35R/C] ▷ Control type : Normal high type Control Pressure kpa (kgf/cm², psi) 539.370 ~ 0 ( 5.5 ~ 0, 78.23 ~ 0) Current value(mA) ...

Engine Room Under Cover Components
1. Under Cover 2. Side Cover (RH) 3. Side Cover (LH) ...
