Kia Sorento (XM, 2011-2015) Owner's Manual / Maintenance / Fuses / Fuse/relay panel description

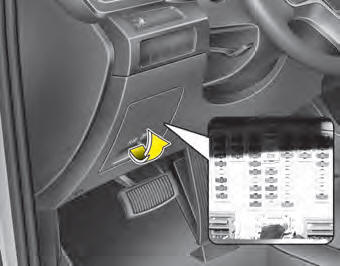

Inside the fuse/relay panel covers, you can find the fuse/relay label describing


Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

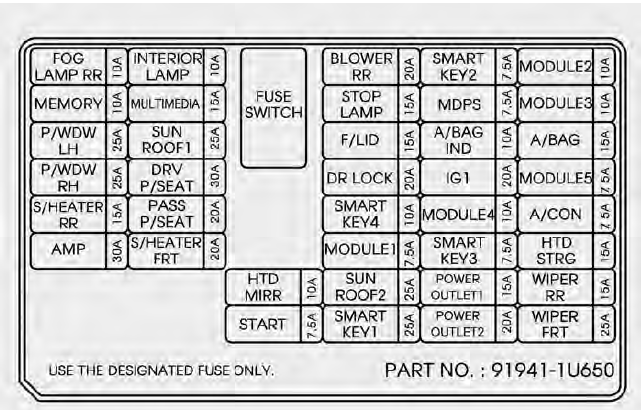

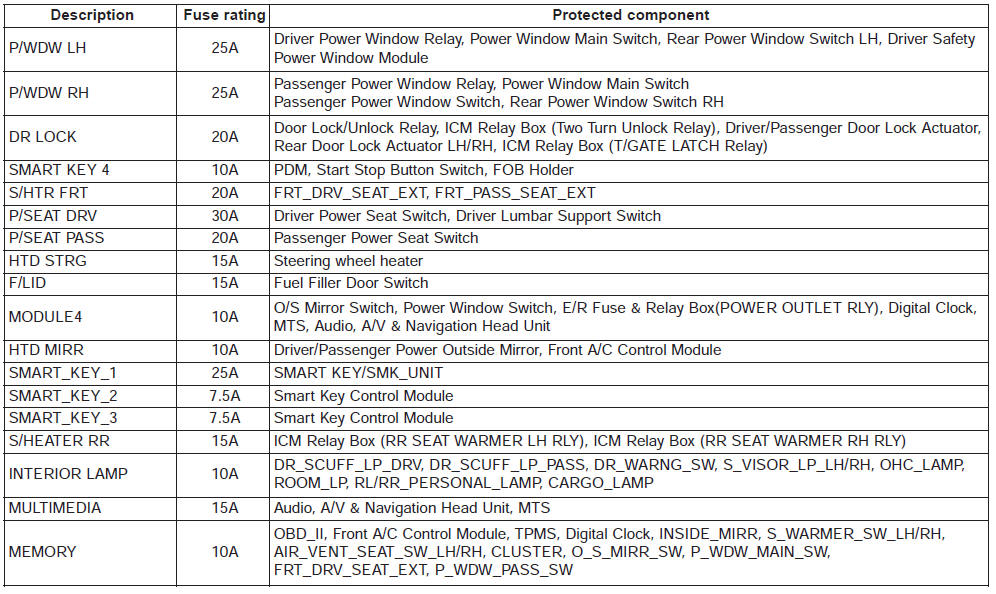

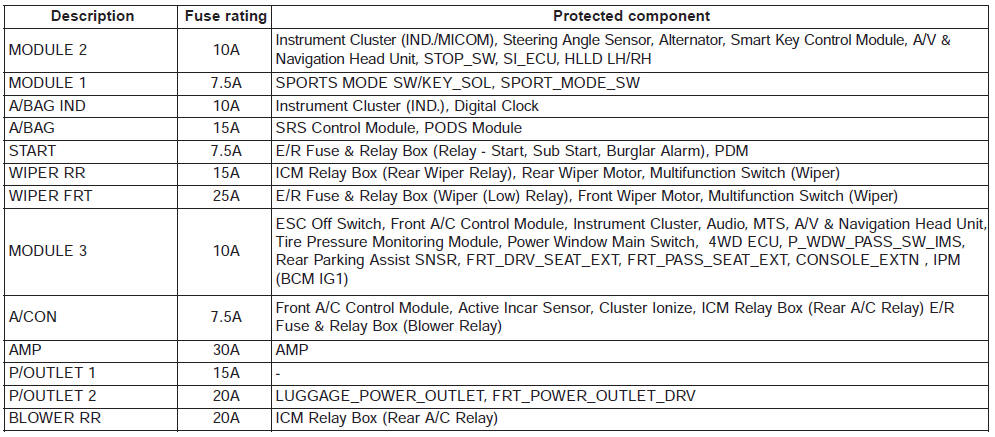

Inner fuse panel


Inner fuse panel

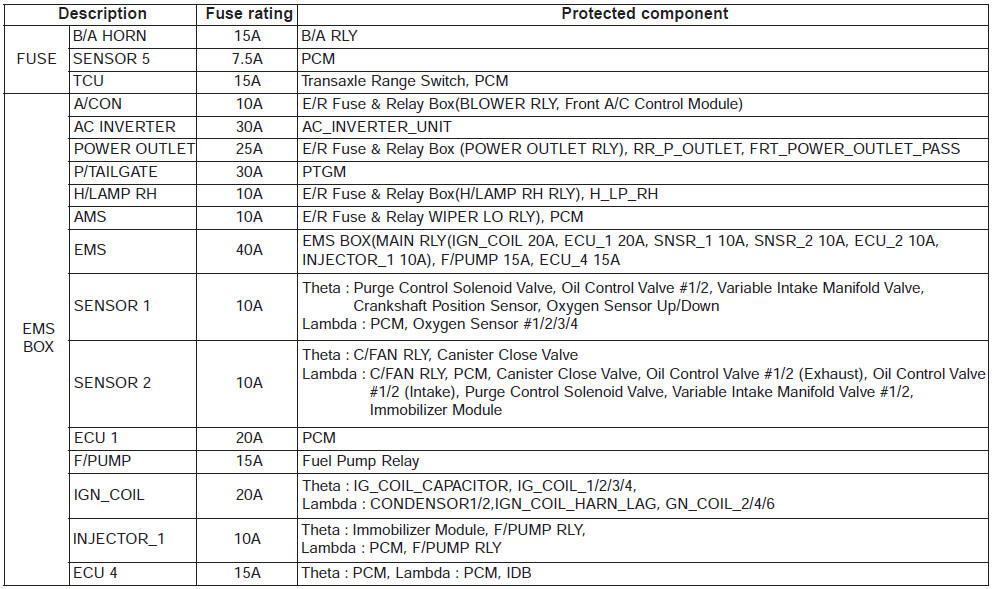

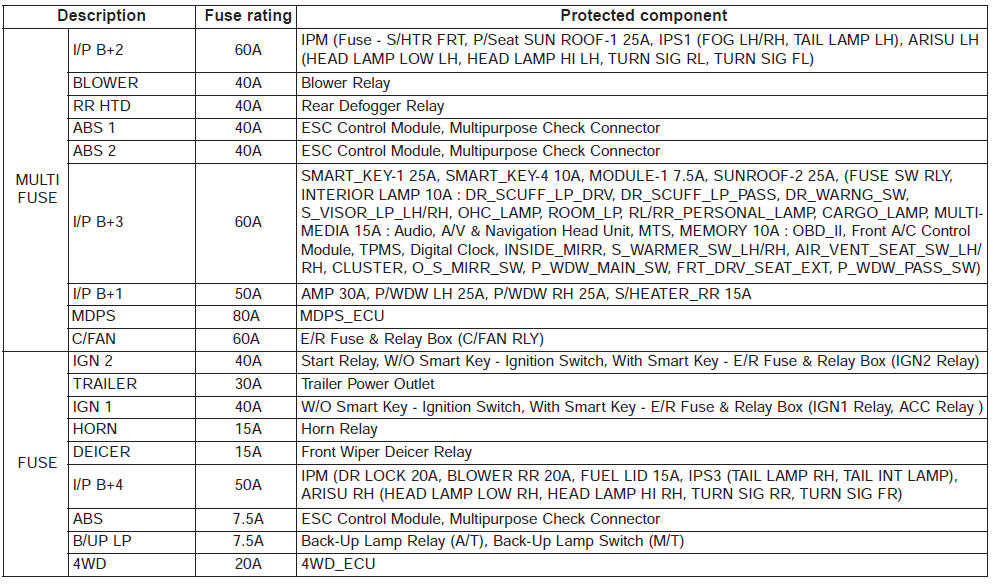

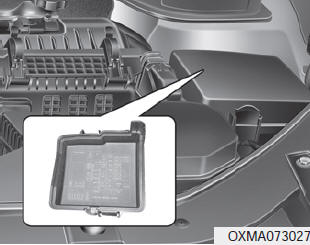

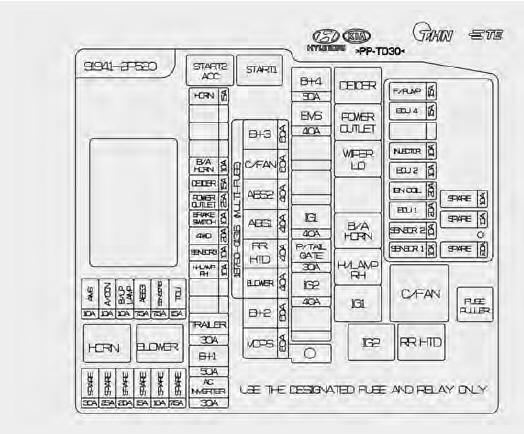

Engine compartment fuse panel


Engine compartment fuse panel






Engine compartment fuse panel


Engine compartment fuse panel
