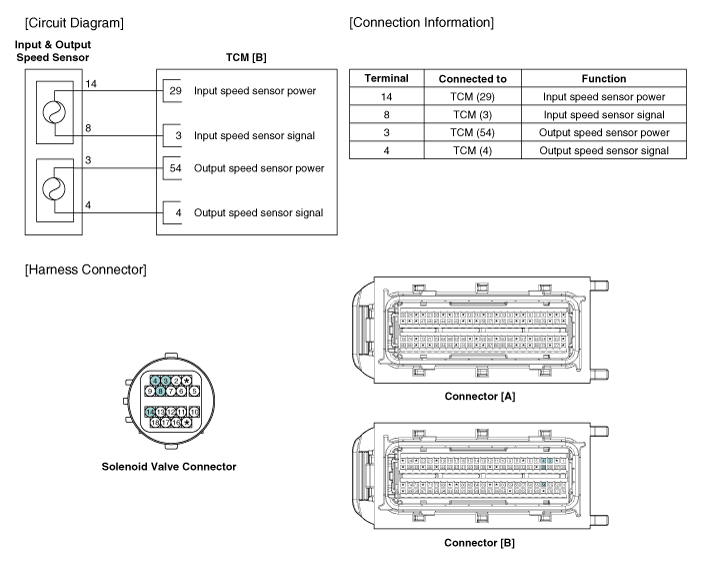

Kia Sorento: Input Speed Sensor Circuit Diagram - Automatic Transaxle Control System - Automatic Transaxle SystemKia Sorento: Input Speed Sensor Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Input Speed Sensor Circuit Diagram

Input Speed Sensor Specifications
▷ Type: Hall effect sensor Operation condition (...
Input Speed Sensor Signal Waveform
...
