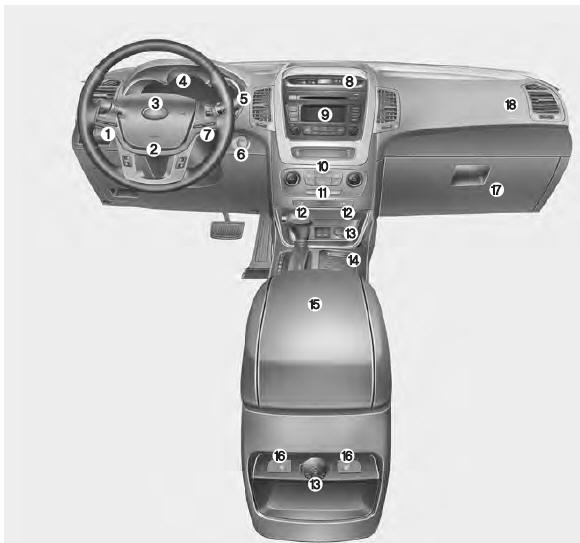

Kia Sorento: Instrument panel overview
1. Audio remote control buttons
2. Driver’s front air bag
3. Horn
4. Instrument cluster
5. Wiper and washer control lever
6. Ignition switch or Engine start/stop button
7. Cruise control button
8. Digital clock
9. Audio
10. Hazard warning flasher
11. Climate control system
12. Front seat warmer /Seat cooler
13. Power outlet
14. Cup holder
15. Center console storage box
16. Rear seat warmer
17. Glove box
18. Passenger’s front air bag
