Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / BCM (Body Control Module) / IPM Trouble Diagnostics When Using GDS
| 1. |
The IPM can be diagnosed by using the GDS. The BCM communicates
with the GDS which then displays inputs and outputs along with codes.
|
| 2. |

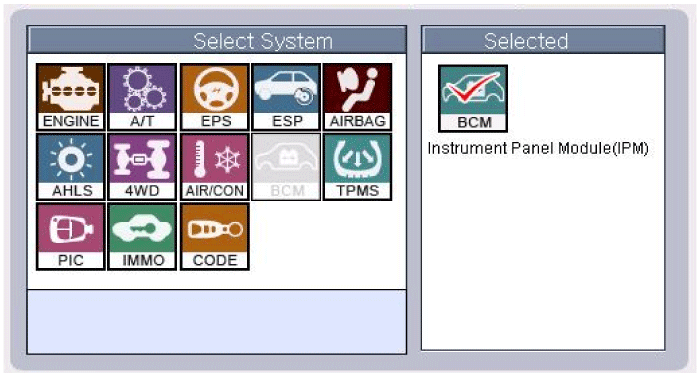

To diagnose the IPM function, select the vehicle model and IPM.
|
| 3. |

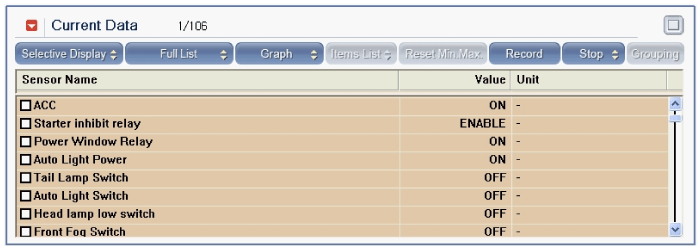

To consult the present input/out value of IPM, "Current DATA".
It provides information of IPM input/output conditions of power supply,
turn signal/brake lamp, headlamp, door locks, outside mirror, wiper,
auto-light and transmitters etc.
|
| 4. |

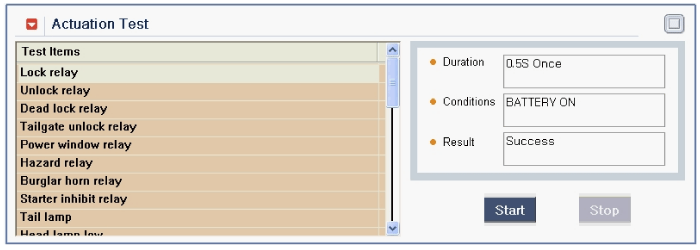

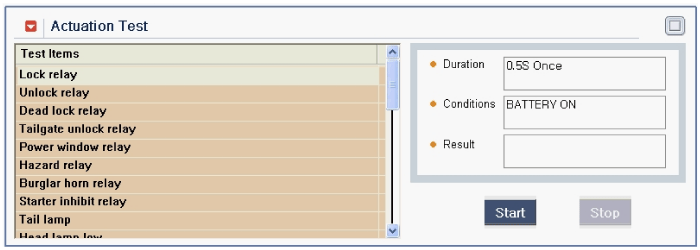

To perform functional test on IPM outputs, select "Actuation Test"
|
| 5. |

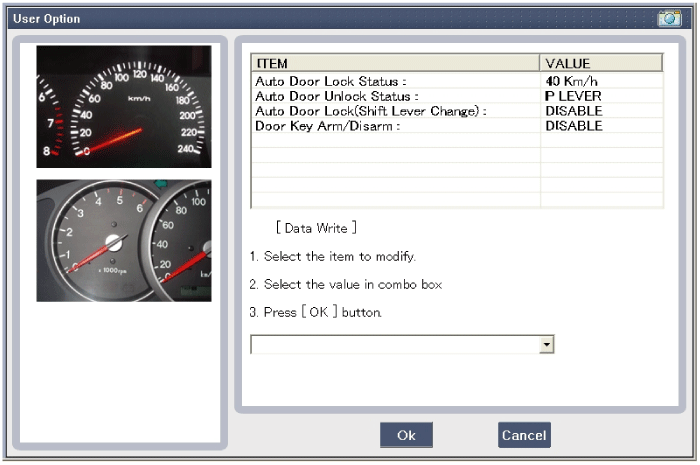

To change the "user option" on BCM, select the "User Option" menu
and change the value as below.
|
IPM Installation
1.
Install IPM(Intelligent intergrated Platform Module).
2.
Connect the IPM connector.
3.
Install the crash pad lower pane...
