Kia Sorento: Power Door Lock Switch Diagnosis With GDS
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Power Door Locks / Power Door Lock Switch Diagnosis With GDS
| 1. |
It will be able to diagnose defects of door lock with GDS quickly.
GDS can operates actuator forcefully, input/output value monitoring
and self diagnosis.
|
| 2. |

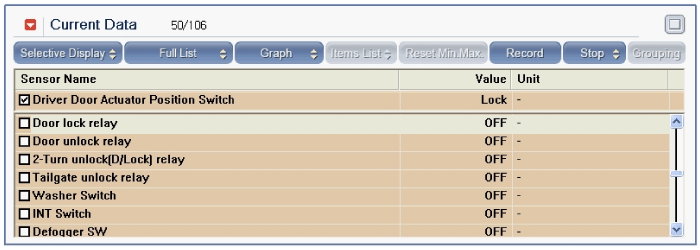

Select "Current data", if you will check current data of power
door lock system. It provides input/output status of IPM.
|
| 3. |

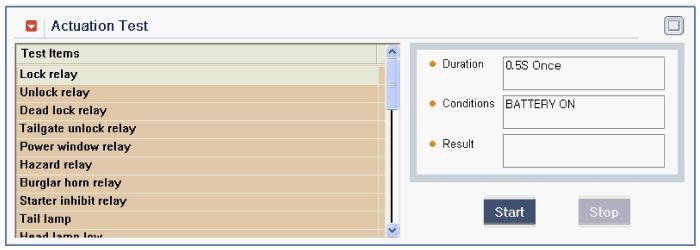

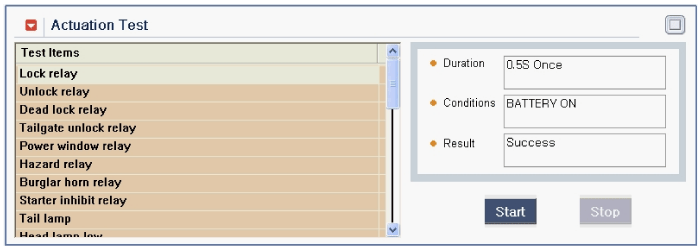

If you will check the power door lock operation forcefully, select
"Actuation test".
|
| 4. |
To check the DTC of the door lock, select "Diagnostic trouble
codes".
|
