Kia Sorento: Power Tailgate Unit Block Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Power Tailgate Module / Power Tailgate Unit Block Diagram

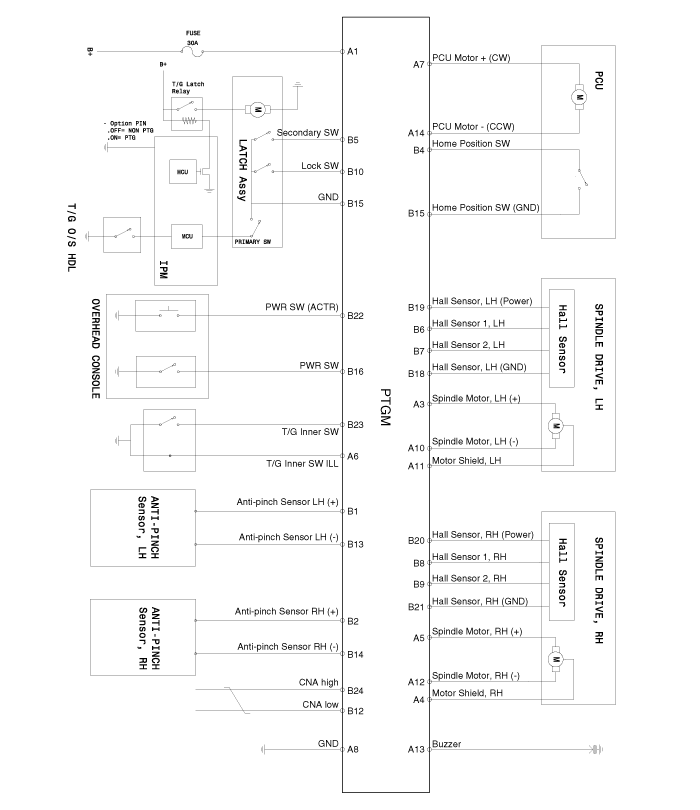

Power Tailgate Unit Circuit Diagram
Power Tailgate Unit Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear left luggage side trim.
(Refer to Body - "Interior Trim")
...
