Kia Sorento: Power Window Switch Components
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Power Windows / Power Window Switch Components

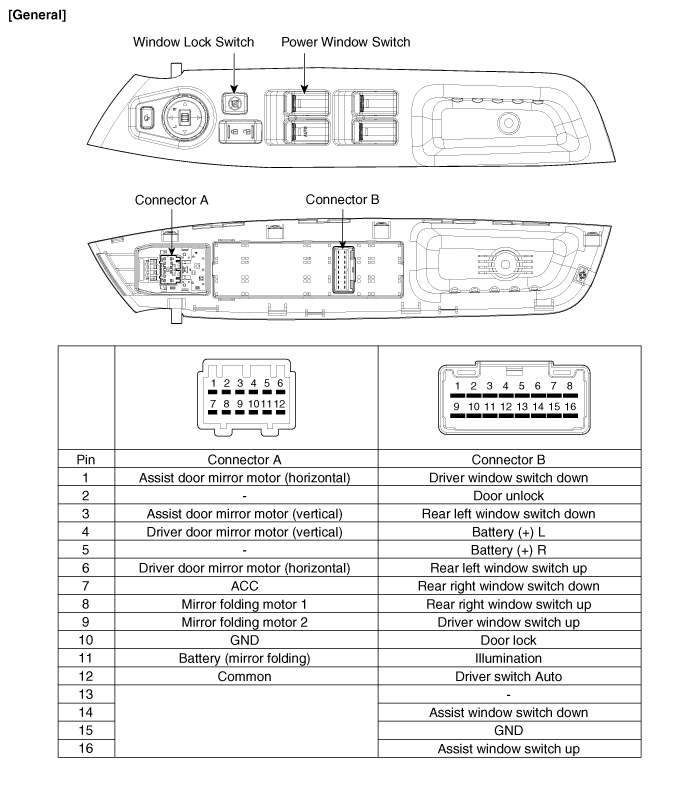

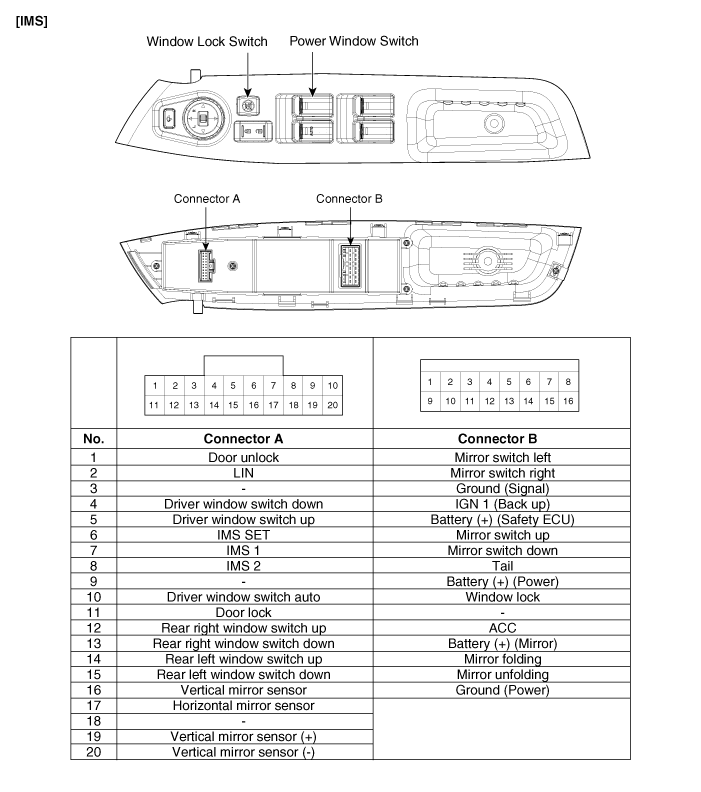

Power Window Main Switch

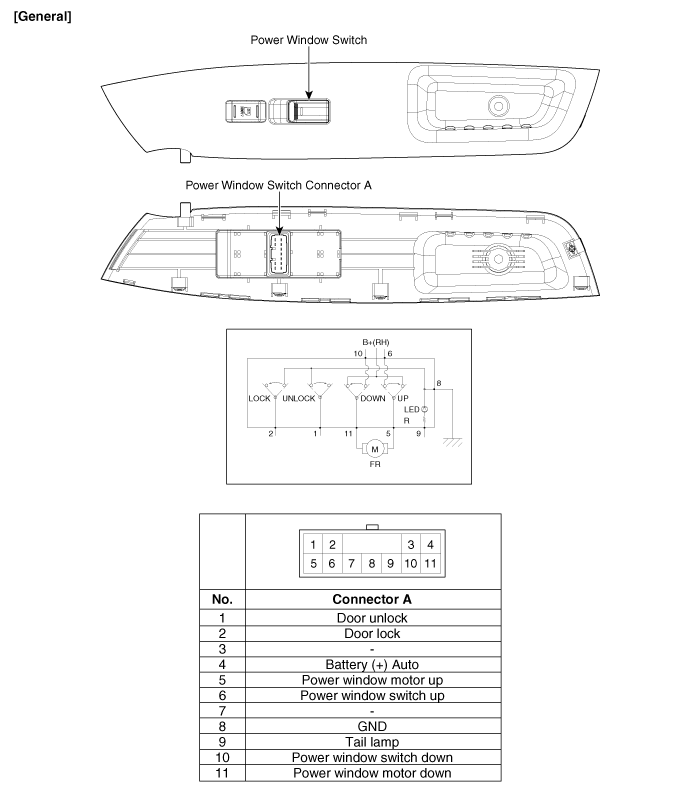

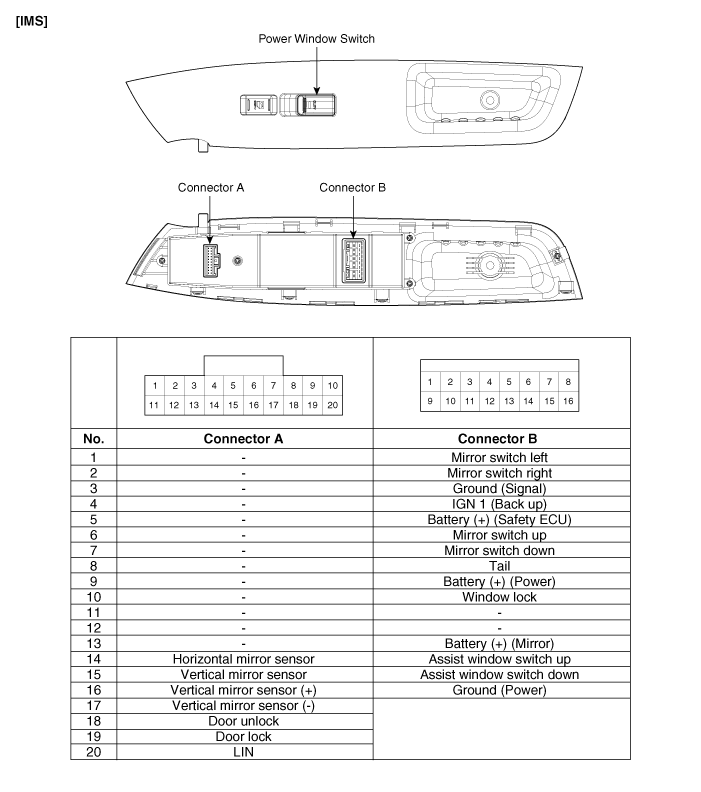

Passenger Power Window Switch

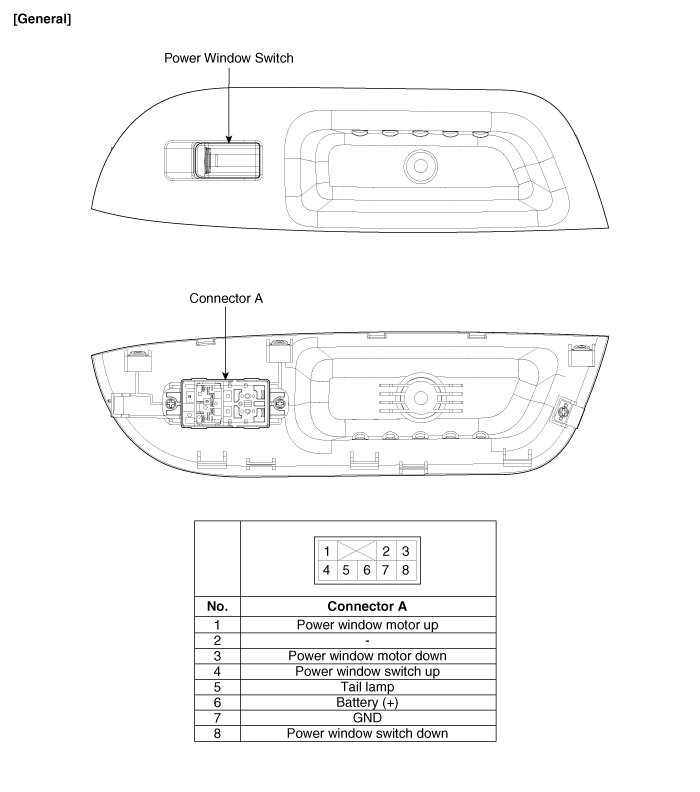

Rear Power Window Switch
