Kia Sorento: Rear Glass Defogger Switch Inspection
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Rear Glass Defogger / Rear Glass Defogger Switch Inspection
| 1. |
It will be able to diagnose defects of rear glass defogger with
GDS quickly. GDS can operates actuator forcefully, input/output value
monitoring and self diagnosis.
|
| 2. |

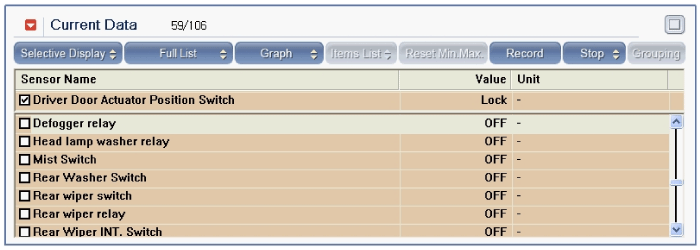

Select "Current data", if you will check current data of rear
glass defogger system. It provides input/output status of rear glass
defogger.
|
| 3. |

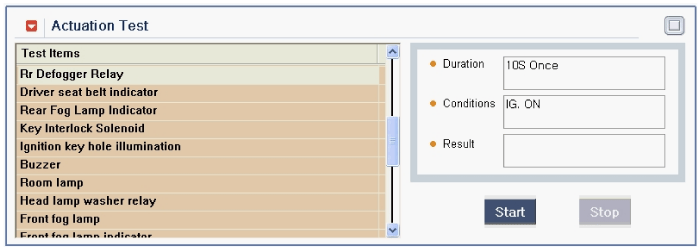

If you will check the rear glass defogger operation forcefully,
select "Actuation test".
|
| 4. |
To check the DTC of the rear glass defogger, select "Diagnostic
trouble codes"
|
