Kia Sorento: Rear Hub - Carrier Components
Kia Sorento (XM, 2011-2015) Service Manual / Driveshaft and axle / Rear Axle Assembly / Rear Hub - Carrier Components

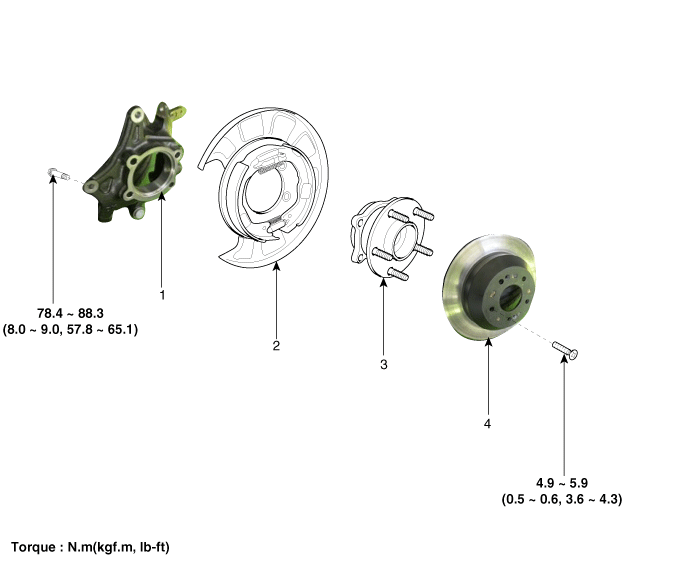

| 1. Rear carrier assembly 2. Parking brake assembly |
3. Rear hub assembly 4. Rear brake disc |
Rear Axle Assembly
Rear Hub - Carrier Removal
1.
Remove the front wheel and tire (A) from front hub.
Tightening torque:
88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)
...
