Kia Sorento: Roof Trim Components

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Exterior / Roof Trim Components

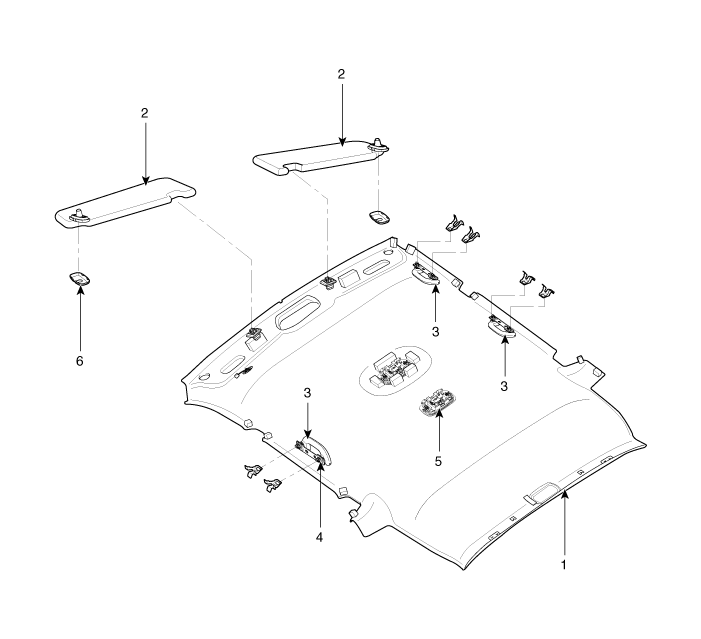

1. Headliner
2. Sunvisor
3. Assist handle

4. Assist handle mounting bracket
5. Room ramp
6. Sunvisor mounting cover
