Kia Sorento: Start/Stop Button Inspection - Button Engine Start System - Body Electrical SystemKia Sorento: Start/Stop Button Inspection

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Button Engine Start System / Start/Stop Button Inspection

1.
It will be able to diagnose defects of Smart key with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
2.

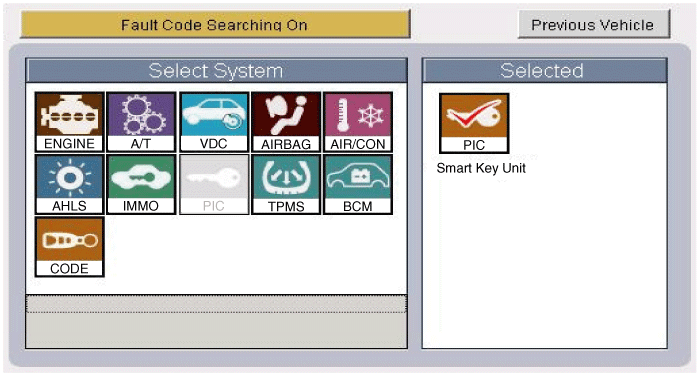

Select model and "Smart key system(Button start)" menu.

3.

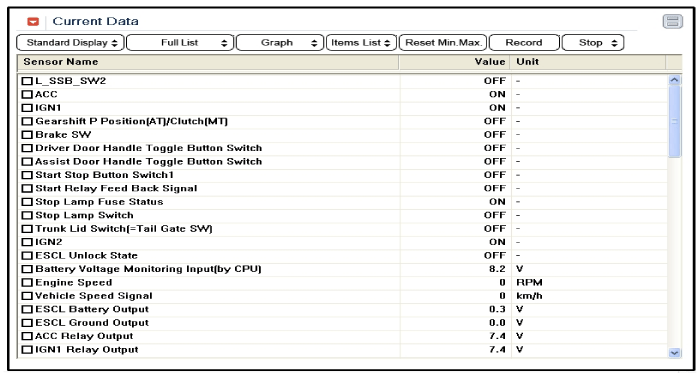

Select "Current Data", if you want to check current data of smart key system.
It provides the input/output status of each module.

4.

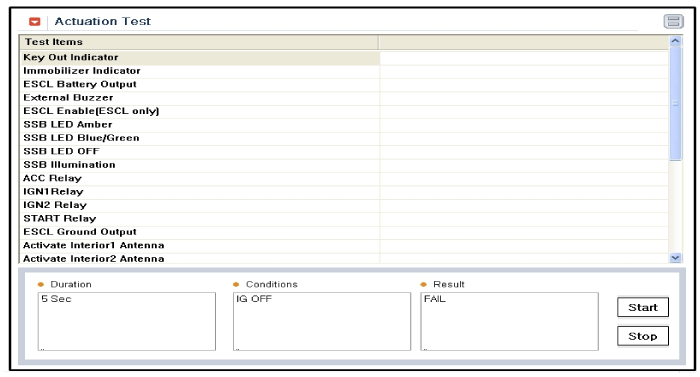

If you want to check smart key system operation forcefully, select "Actuation test".
