Kia Sorento: Water pump Components

Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cooling System / Water pump Components

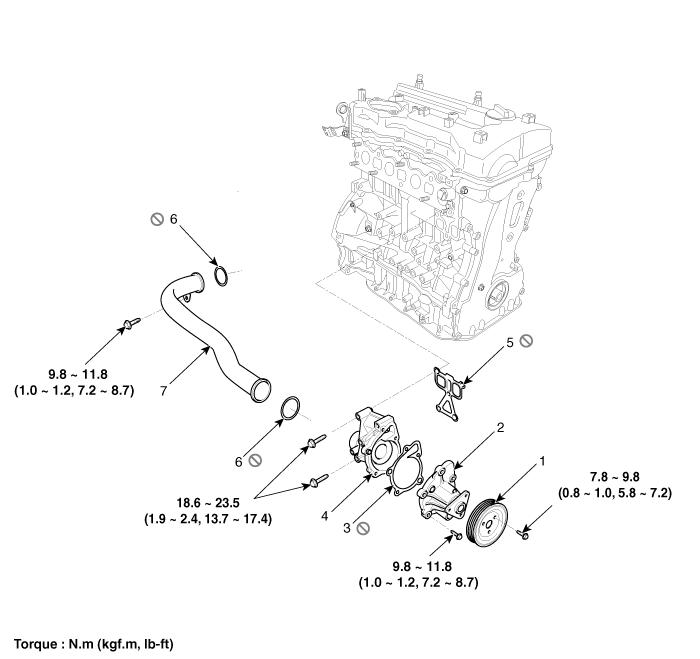

1. Water pump pulley
2. Water pump
3. Water pump gasket

4. Water pump housing
5. Water pump housing gasket
6. O-ring
7. Water inlet pipe
