Kia Sorento: 4WD ECU Circuit Diagram
Kia Sorento (XM, 2011-2015) Service Manual / 4 Wheel Drive (4WD) System / 4WD Control System / 4WD ECU Circuit Diagram

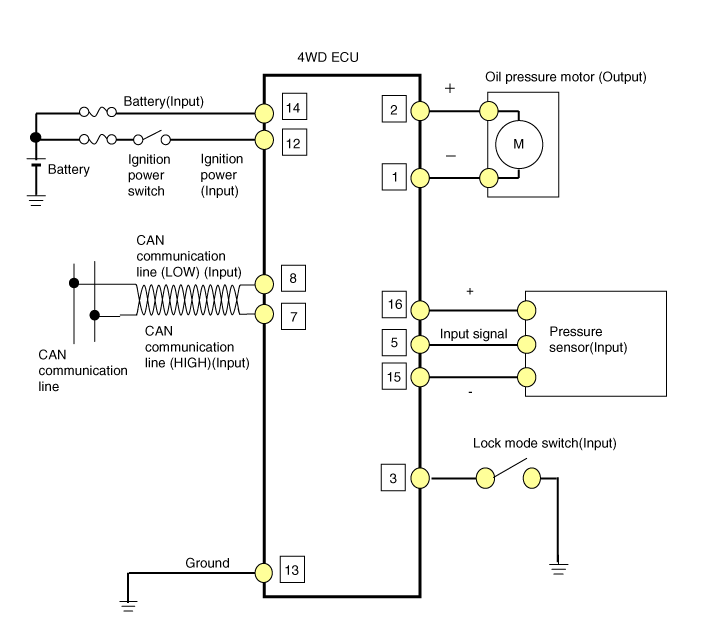

4WD ECU Circuit Diagram and Connector
4WD ECU Connector
Pin
Function
1
MOTOR A
2
MOTOR B
3
LOCK MODE SWITCH (Input)
4
-
...
4WD ECU Removal
1.
Prior to replacing the 4WD ECU, check the 4WD ECU's clutch learing
with the GDS tool.
(Refer to 4WD Control System - "Repair procedures")
...
