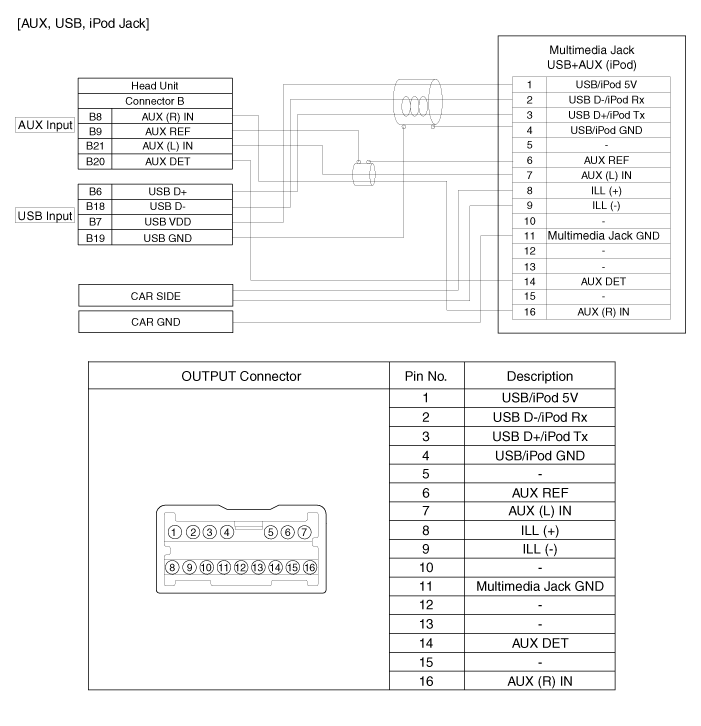

Kia Sorento: AUX(Auxiliary) Jack Circuit Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Audio / AUX(Auxiliary) Jack Circuit Diagram
Audio Remote Control Installation
1.
Install the audio remote control switch on the steering wheel
front cover.
2.
Install the steering wheel front cover.
3.
...
AUX(Auxiliary) Jack Description
The AUX, iPod and USB JACK on the center console is for customers who
like to listen to external portable music players like the MP3, iPod, earphone,
USB memory stick, CD player and etc., throug...
