| BSD Unit Alignment |

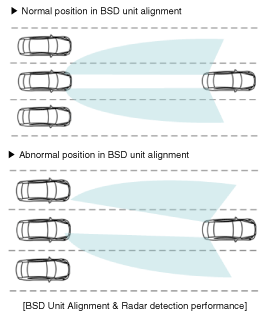

To sense the cars exactly in the next lane with the radar, the direction
of the sensor and the direction of the vehicle have to align.
This is BSD unit alignment. If this alignment is not performed as below
illustration, the degradation of detection performance and the cause of false
alarms.
The rear bumper accident vehicle and after replacing the BSD unit vehicle
have to do this align especially.
| 1. |
The rear bumper accident vehicle and after replacing the BSD unit

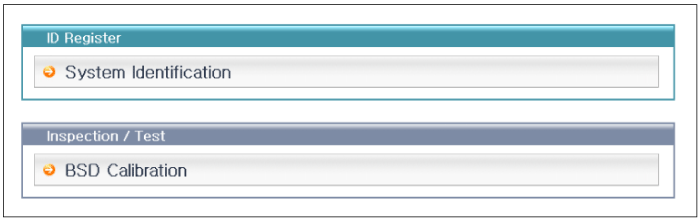

vehicle have to do BSD unit alignment using GDS.
|
| 2. |

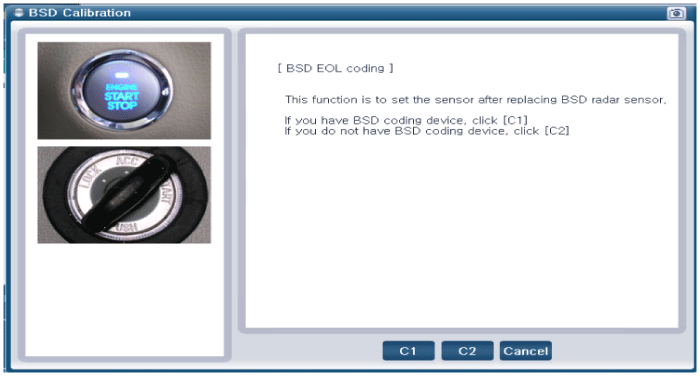

Select the "BSD EOL coding" procedure.
|
| 3. |

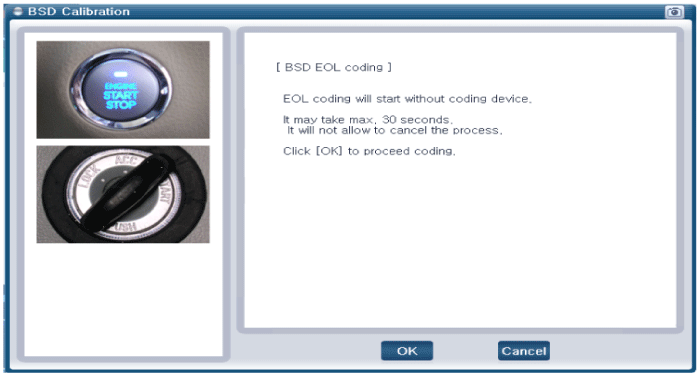

Complete the alignment procedure according to GDS screen message.
|
1.
Install the BSD units to the rear bumper.
2.
Install the rear bumper.
3.
Connect the negative (-) battery terminal.
...
