Kia Sorento: Blower Unit Components
Kia Sorento (XM, 2011-2015) Service Manual / Heating,Ventilation And Air Conditioning / Blower / Blower Unit Components

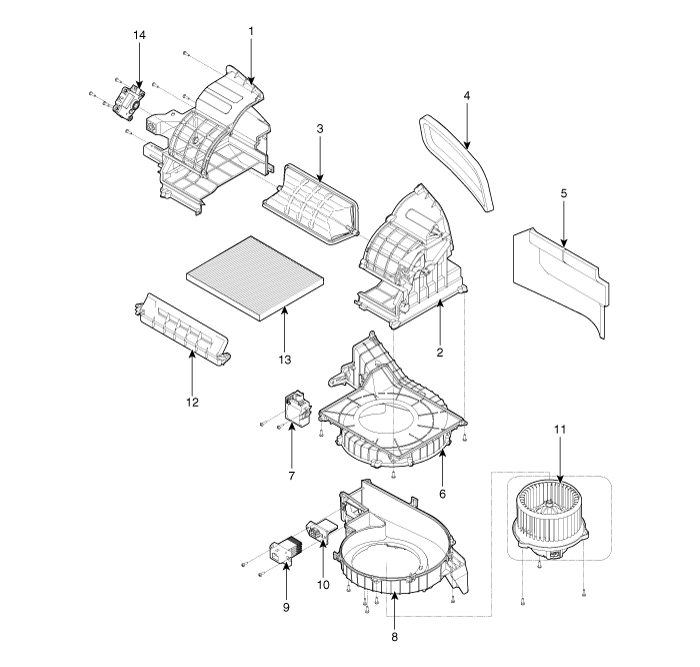

| 1. Intake Case (LH) 2. Intake Case (RH) 3. Intake Door 4. Cowl Seal 5. NVH Seal |
6. Blower Upper Case 7. Cluster Ionizer 8. Blower Lower Case 9. Power Mosfet (DATC) 10. Blower Resistor (Manual) |
11. Blower Motor 12. Air Cleaner Filter Cover 13. Air Cleaner Filter 14. Intake Actuator |
Blower
...
Blower Unit Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Recover the refrigerant with a recovery/recycling/charging station.
3.
...
