Kia Sorento: Circuit Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Back View Camera System / Circuit Diagram

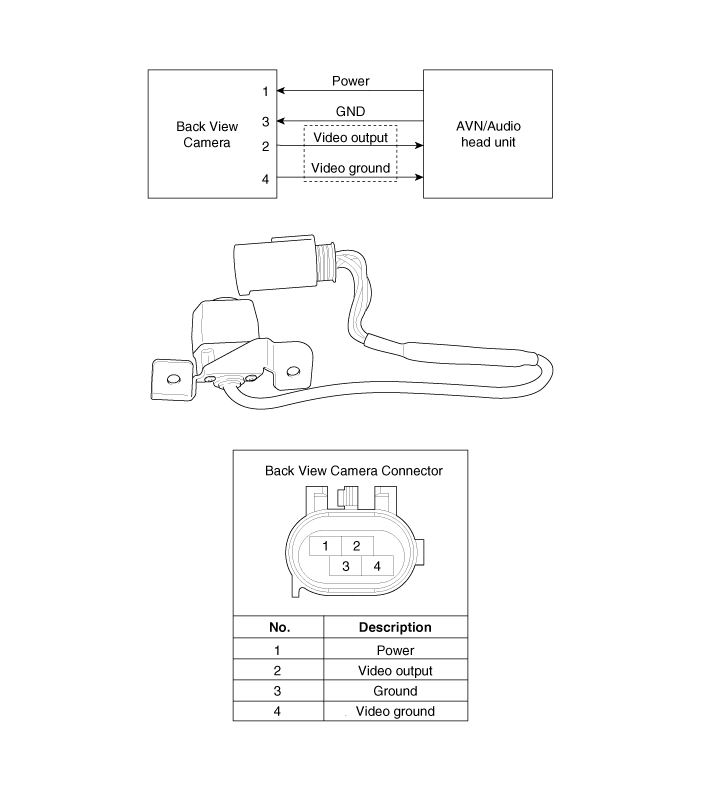

1. Back view camera
2. AVN/Audio head unit...
Component Location
Back view camera will activate when the backup light is ON with the ignition
switch ON and the shift lever in the R position.
This system is a supplemental system that shows behind the vehicle ...
Description
