Kia Sorento: Circuit Diagram

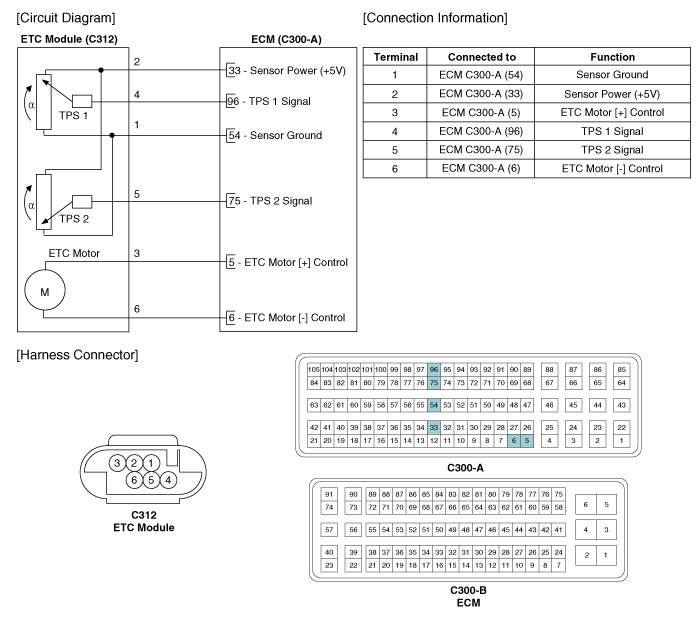

Kia Sorento (XM, 2011-2015) Service Manual / Engine Control / Fuel System / Engine Control System / ETC (Electronic Throttle Control) System / Circuit Diagram

[Throttle Position Sensor (TPS)] Throttle Angle(...

Throttle Position Sensor (TPS) 1. Connect the GDS on the Data Link Connector (DLC). 2. Start the engine and measure the output voltage of TPS 1...
