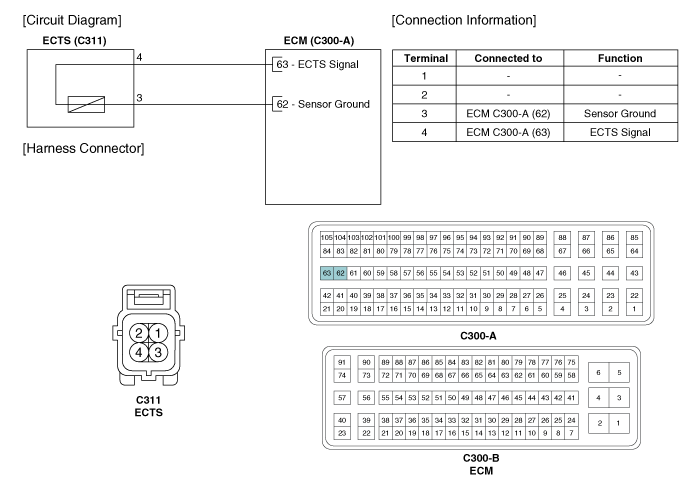

Kia Sorento: Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Engine Control / Fuel System / Engine Control System / Engine Coolant Temperature Sensor (ECTS) / Circuit Diagram

Temperature Resistance (kΩ)...

1. Turn the ignition switch OFF. 2. Remove the ECTS (Refer to "Removal"). 3. After immersing the thermistor of t...
