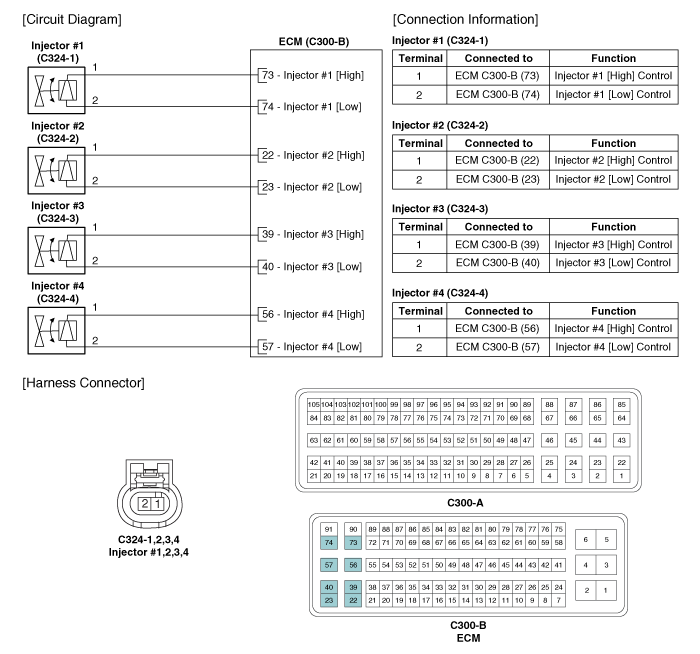

Kia Sorento: Circuit Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Engine Control / Fuel System / Engine Control System / Injector / Circuit Diagram
