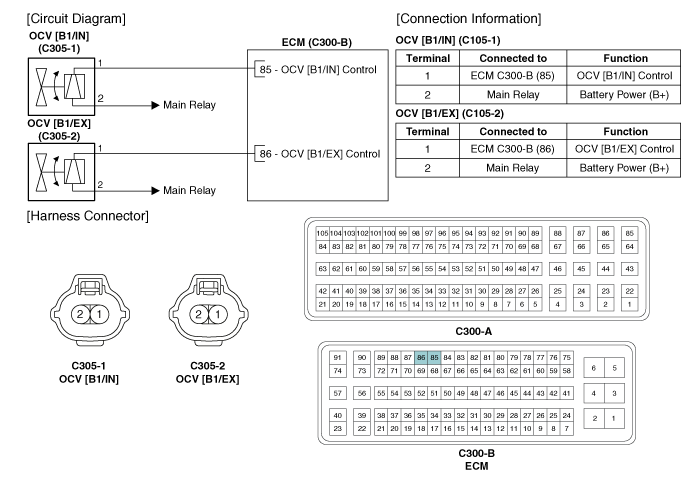

Kia Sorento: Circuit Diagram - CVVT Oil Control Valve (OCV) - Engine Control System - Engine Control / Fuel SystemKia Sorento: Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Engine Control / Fuel System / Engine Control System / CVVT Oil Control Valve (OCV) / Circuit Diagram

Specification
Item Specification Coil Resistance (Ω) 6.9 ~ 7.9 [20...
Inspection
1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the OCV terminals 1 and 2....
