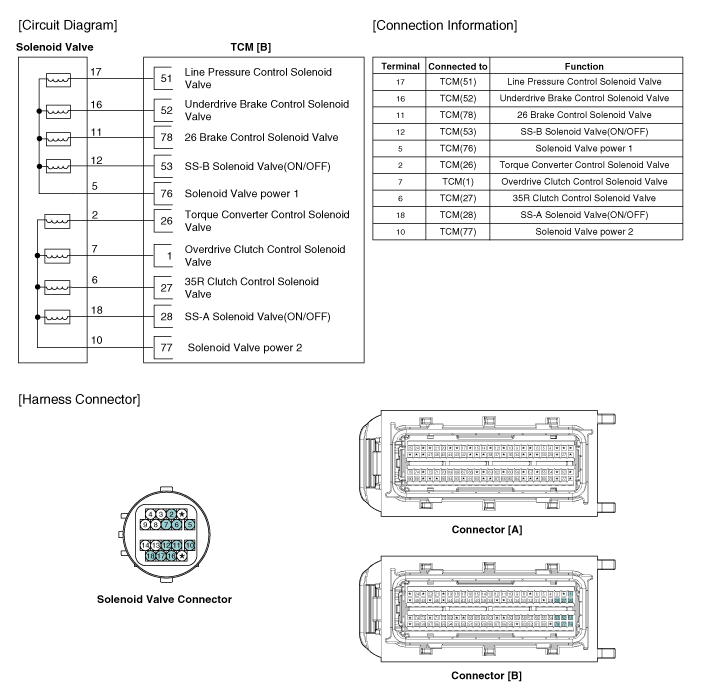

Kia Sorento: Circuit Diagram
Direct control VFS[26/B]
▷ Control type : Normal low type
Control Pressure kpa
(kgf/cm², psi)
0 ~ 539.37 (0 ~ 5.5, 0 ~ 78.23)
Current value(mA)
...
Specifications
1.
Turn ignition switch OFF.
2.
Remove the air duct.
(Refer to Engine Mechanical System - "Air cleaner")
3.
...
Inspection
See also:
Rear Upper Arm Inspection
1.
Check the bushing for wear and deterioration.
2.
Check the rear upper arm or damage and deformation.
3.
...
Specifications
Tightening Torques
Items
N.m
Kgf.m
lb-ft
Transfer assembly mounting bolts
60.8 ~ 65.7
6.2 ~ 6.7
44.8 ~ 48.5
...
Rear View Monitor malfunction and limitations
Rear View Monitor malfunction
When the Rear View Monitor system encounters an internal electronic fault or signal interruption, the camera output
image on your dashboard display may temporarily ...
