Kia Sorento: Component Location - Horn - Body Electrical SystemKia Sorento: Component Location

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Horn / Component Location

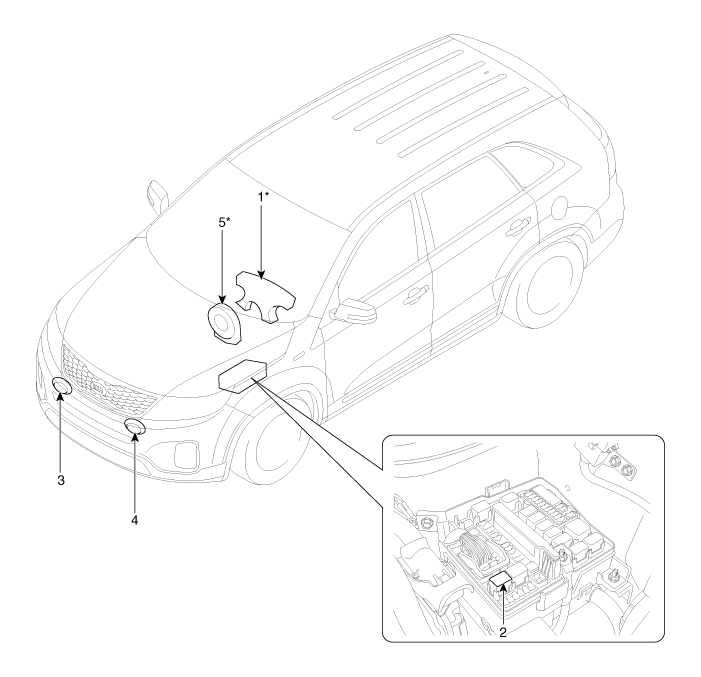

1. Horn switch
2. Horn relay (Engine room compartment)
3. Horn (Low pitch)
4. Horn (High pitch)
5. Clock spring

Horn
...
Removal
1. Remove the head lamp. (Refer to "Lighting system") 2. Remove the bolts and disconnect the horn connectors, then remove the high p...
