Kia Sorento: Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / IMS (Integrated Memory) / Component Location

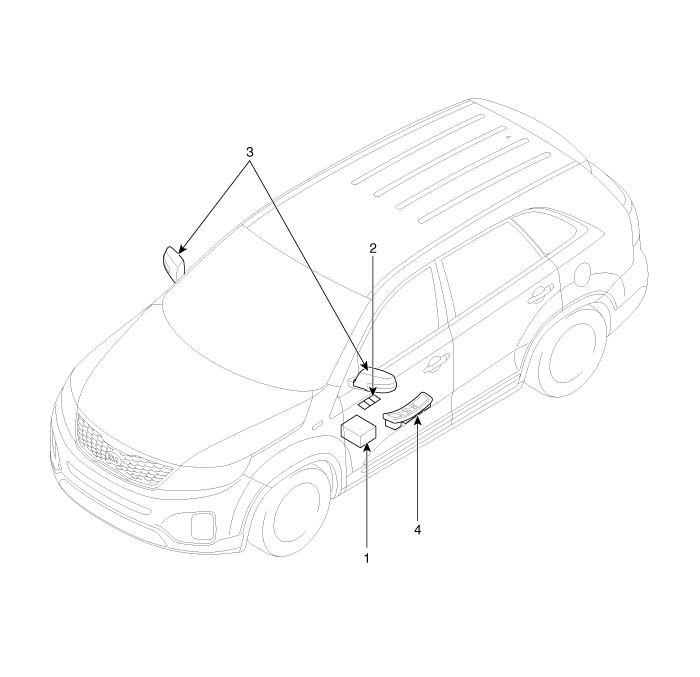

| 1. Seat Memory Unit (IMS) 2. IMS control switch |
3. Outside mirror 4. IMS mirror control (Driver power window switch) |
Memory Power Seat Unit
Item
Specification
Rating voltage
DC 12V
Operation voltage
DC 9V ~ 16V
Operation temperaure
-30...
Specifications
...
Circuit Diagram
