Kia Sorento: Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Seat Electrical / Component Location

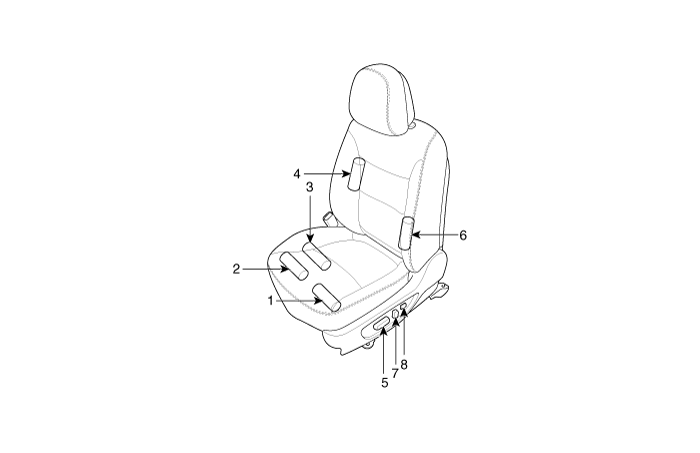

| 1. Slide motor 2. Front height motor 3. Rear height motor 4. Lumber support motor |
5. Power seat switch 6. Reclining motor 7. Reclining switch 8. Lumber support switch |
