Kia Sorento: Component Location - Power Windows - Body Electrical SystemKia Sorento: Component Location

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Power Windows / Component Location

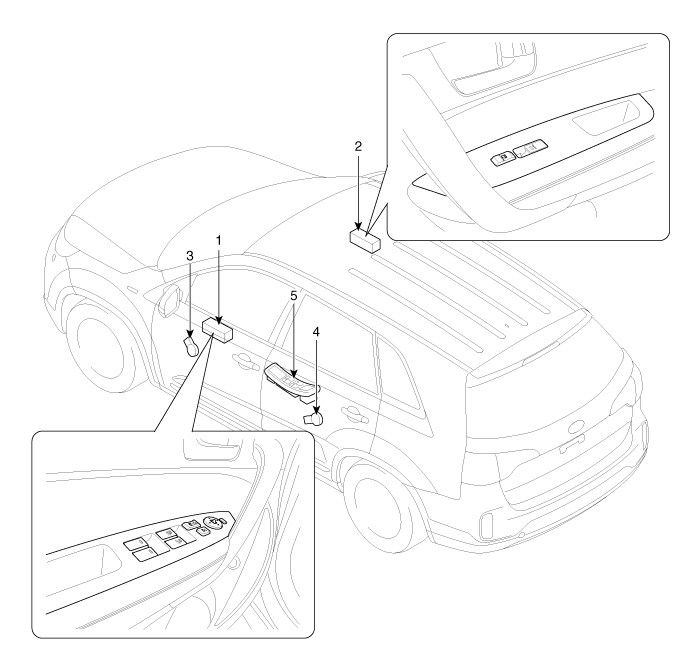

1. Driver power window main switch
2. Passenger window switch
3. Front window motor
 4. Rear window motor
5. Rear window switch

Power Windows
...
Operation
Function Of Safety Power Window When all door (Front, Rear) power window auto-up switch is operated, safety function is activated. 1. Safety function condition W...
