Kia Sorento: Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Rear Wiper/Washer / Component Location

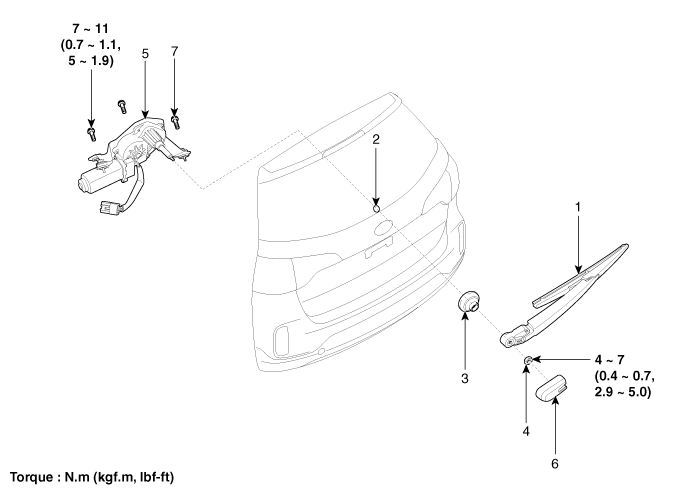

| 1. Rear wiper arm & blade 2. Tailgate glass hole 3. Grommet 4. Rear wiper arm nut |
5. Rear wiper motor assembly 6. Head cap 7. Rear wiper motor bolt |
Rear Wiper/Washer
Rear Wiper Motor
1.
Remove the 4P connector from the rear wiper motor.
2.
Connect battery positive (+) and negative (-) cables to terminals
...
Rear Wiper Motor Inspection
