Kia Sorento: Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Auto Lighting Control System / Component Location

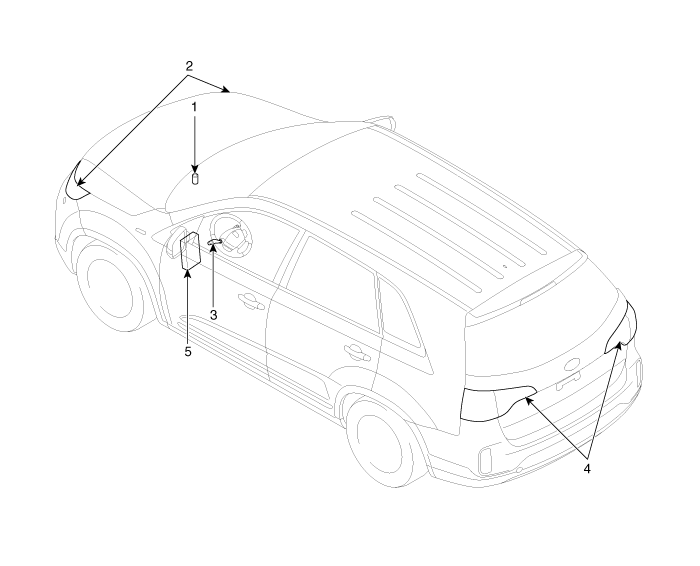

| 1. Auto light sensor 2. Head lamps 3. Lighting switch (Auto) |
4. Tail lamps 5. IPM (Intelligent intergrated Platform Module) |
Items
Specifications
Rated voltage
5V
Load
Max. 1mA
Detection illuminations
Tail lamp
ON : 2.7...
Specifications
...
Circuit Diagram
