Kia Sorento: Component Location - Hydraulic System - Automatic Transaxle SystemKia Sorento: Component Location

Kia Sorento (XM, 2011-2015) Service Manual / Automatic Transaxle System / Hydraulic System / Component Location

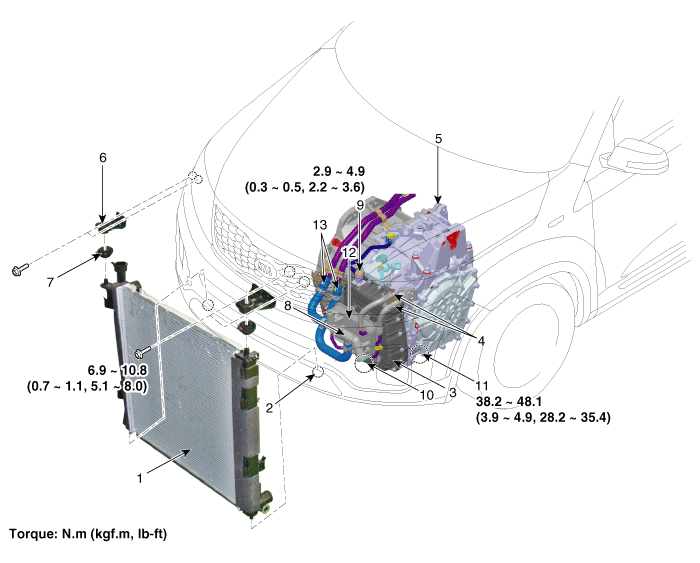

1. Radiator(Automatic transaxle oil cooler)
2. Mounting insulator
3. Valve body cover
4. ATF hose&pipe
5. Automatic transaxle
6. Radiator(Automatic transaxle oil cooler) upper mounting bracket
7. Upper mounting insulator
8. Bypass valve
9. ATF injection hole(eyebolt)
10. Oil level plug
11. Oil drain plug
12. ATF Warmar
13. Coolant hose&pipe

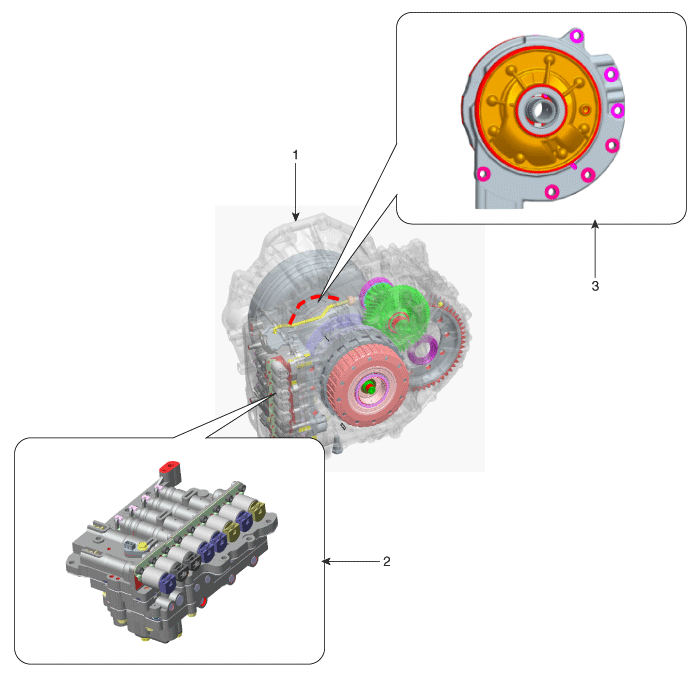

1. Automatic transaxle
2. Valve body assembly
3. Oil pump assembly


Description
The hydraulic system consists of oil, an oil filter, an oil pump, and a valve body (valves and solenoid valves). The oil pump is powered by the engine. ATF passes through the oil filter and...
Oil Pump Description
The oil pump is built-in as a single unit with the 26Brake chamber. Rotation of the pump builds the hydraulic pressure needed for the lubrication of the various parts of the transaxle and operat...
