Kia Sorento (XM, 2011-2015) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Component Location

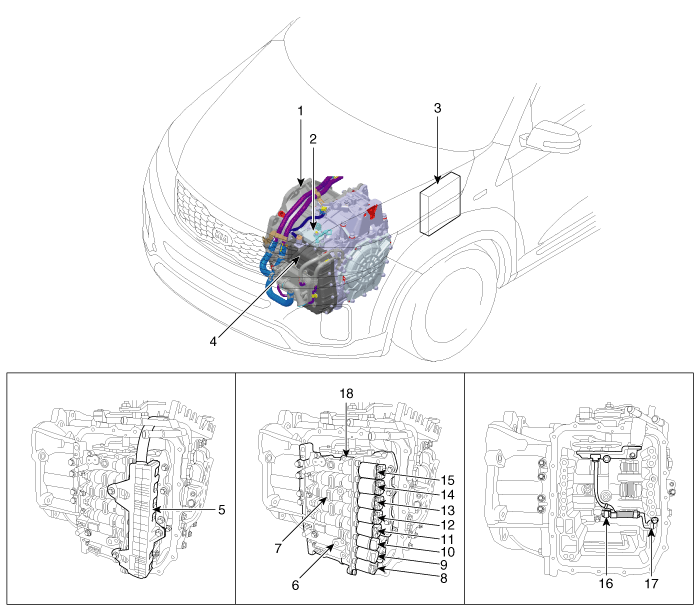

1. Automatic transaxle
2. Inhibitor switch
3. Transaxle Control Module (TCM)
4. Valve body cover
5. Solenoid valve connect
6. Oil temperature sensor
7. Valve body assembly
8. Line Pressure Control Solenoid Valve
9. SS-A Solenoid Valve(ON/OFF)
 10. SS-B Solenoid Valve(ON/OFF)
11. Overdrive Clutch Control Solenoid Valve(OD/C)
12. Underdrive Brake Control Solenoid Valve(UD/B)
13. 26 Brake Control Solenoid Valve(26/B)
14. 35R Clutch Control Solenoid Valve(35R/C)
15. Torque Converter Control Solenoid Valve(T/CON)
16. Output speed sensor
17. Input speed sensor
18. Valve body assembly

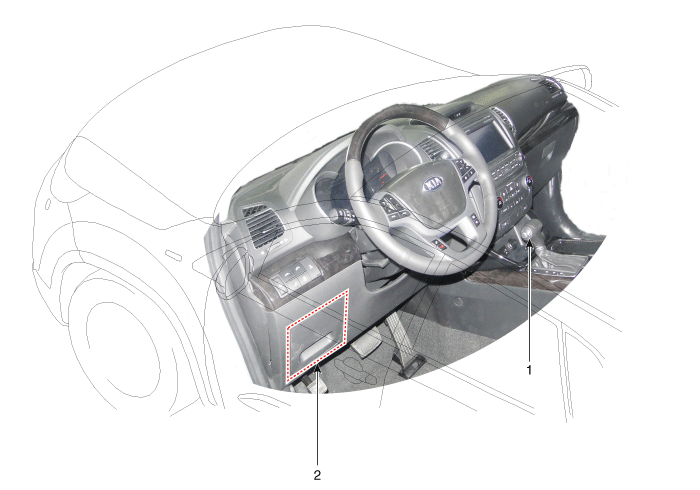

1. Shift lever
2. Data Link Connector (DLC)

Control System Composition
...
Circuit Diagram
...
