Kia Sorento: Components - Cooling System - Engine Mechanical SystemKia Sorento: Components

Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cooling System / Components

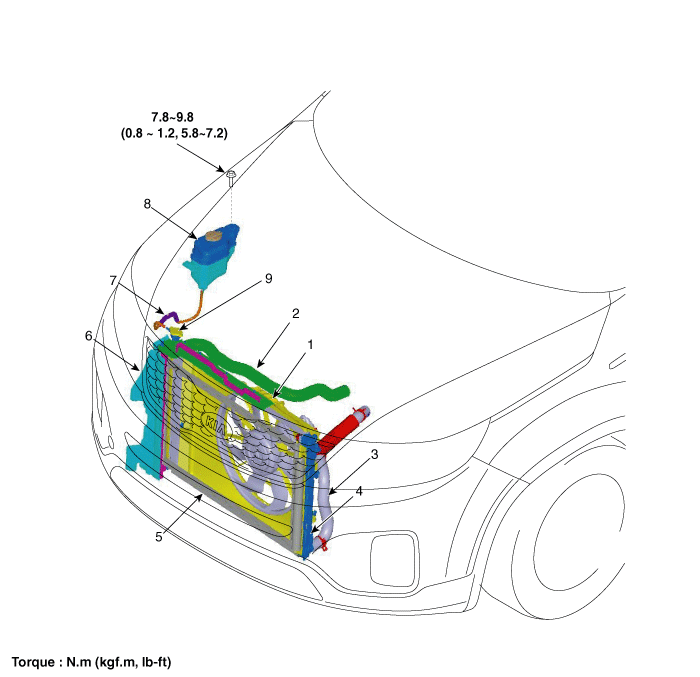

1. Cooling fan
2. Radiator upper hose
3. Radiator lower hose
4. Radiator
5. Condenser
6. Side air guard
7. Over flow hose
8. Reservior tank
9. Radiator cap
